Silicon Sensing

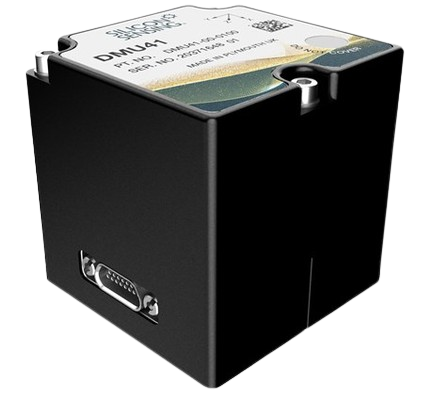

The Silicon Sensing DMU41 is a plug-and-play 6-axis inertial measurement unit featuring an angular range of ±490 °/s and an acceleration of ±10 g. This device delivers an in-band quiescent noise of 0.05 °/s rms and 0.9 mg, alongside a bias instability of 0.1 °/hr and a bias over temperature of ±7 °/h rms and 1.7 mg across a supply voltage range of 4.5 to 28 VDC. Request a quote for the Silicon Sensing DMU41 by submitting your exact part number, quantity, and application requirements.
View product details →
Silicon Sensing
The Silicon Sensing DMU11 is a 6-axis PCB IMU featuring a 300 °/s angular range, a 10 g acceleration limit, and a 45 Hz bandwidth. This device delivers an in-band quiescent noise of 0.1 °/s rms, a bias over temperature of ± 2 °/s, a bias instability of 20 °/hr, and operates on a supply voltage ranging from 3.2 to 5.25 VDC. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Silicon Sensing

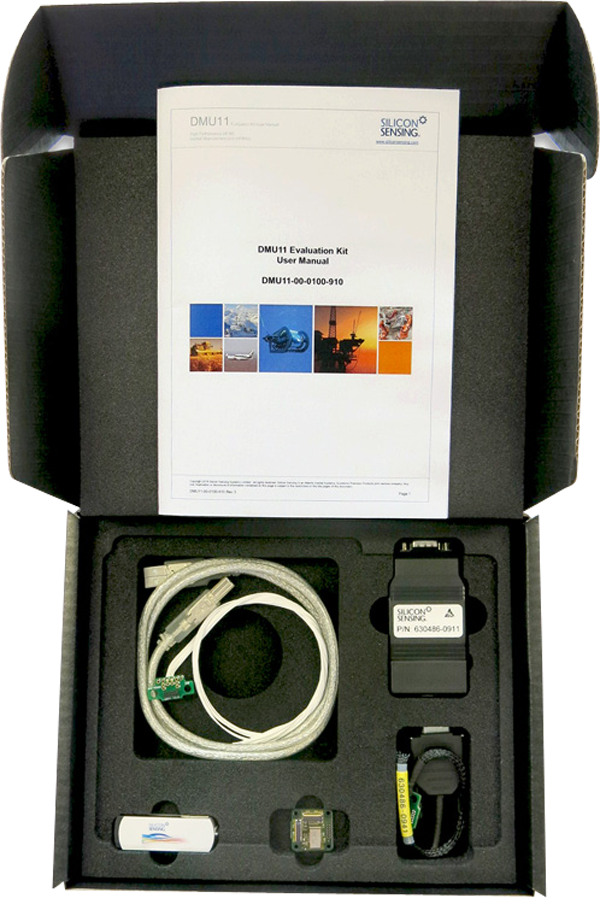

The Silicon Sensing DMU11-21-0500 is an IMU evaluation kit featuring a 6-axis evalboard design with a measuring range of 300 °/s and 10 g. This device operates on a supply voltage of 3.2 to 5.25 VDC and delivers an in-band quiescent noise of 0.1 °/s rms, a bias over temperature of ± 2 °/s, and a bias instability of 20 °/hr. Submit your exact part number, quantity, and application requirements for a quote on this evaluation kit.
View product details →
Silicon Sensing
The Silicon Sensing CRS43 is a single-axis plug and play gyro module operating on a 5 VDC supply voltage with selectable angular and measuring ranges of 100 and 200 °/s. This device features sensitivities of 20 and 10 mV/°/s, an in-band quiescent noise of 0.18 °/s rms, a 10 Hz bandwidth, a bias instability of 14 °/hr, and a bias over temperature rated at ± 3 and ± 6 °/s. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Silicon Sensing
The Silicon Sensing CRS39A is a 1-axis PCB gyro device type delivering an angular range of ±25°/s and a measuring range of 27 °/s with a sensitivity of 80 mV/°/s. Operating at a supply voltage of 5 VDC, this sensor provides a bandwidth of 25 hz, an in-band quiescent noise of 0.03 °/s rms, a bias over temperature of 0.05 °/s, and a bias instability of 0.1 °/hr. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Silicon Sensing
The Silicon Sensing CRM202 is a 1-axis integrated circuit gyro featuring selectable angular ranges of ±900 and ±2700 °/s and a sensitivity of 1 mV/°/s. This device operates on a supply voltage ranging from 2.7 to 3.6 VDC, delivering a bandwidth of 160 Hz with an in-band quiescent noise of 0.18 °/s rms, bias instability of 80 °/hr, and a bias over temperature of ±36 °/s. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Silicon Sensing

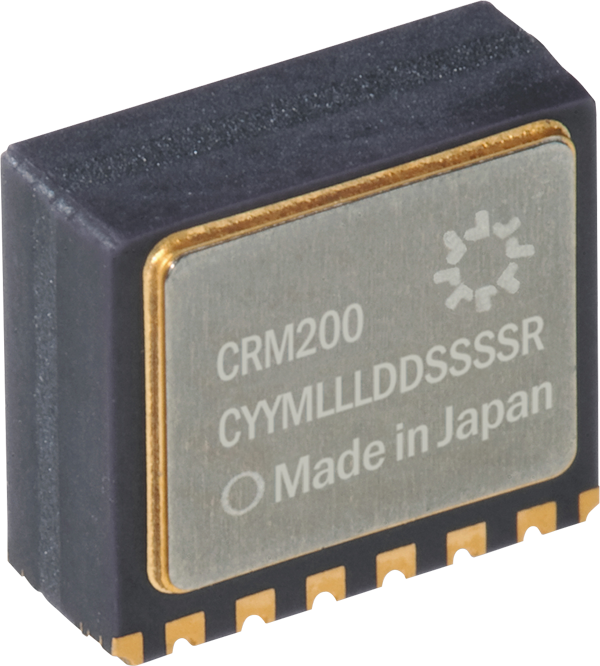

The Silicon Sensing CRM200 is a 1-axis IC gyro featuring a selectable measuring range of 75, 150, 300, and 900 °/s with corresponding sensitivities of 12, 6, 3, and 1 mV/°/s. This device operates on a supply voltage from 2.7 to 3.6 VDC and delivers a 160 Hz bandwidth, 0.18 °/s rms in-band quiescent noise, a bias stability of 24 °/hr, and a bias over temperature of ± 1.5 °/s. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Silicon Sensing

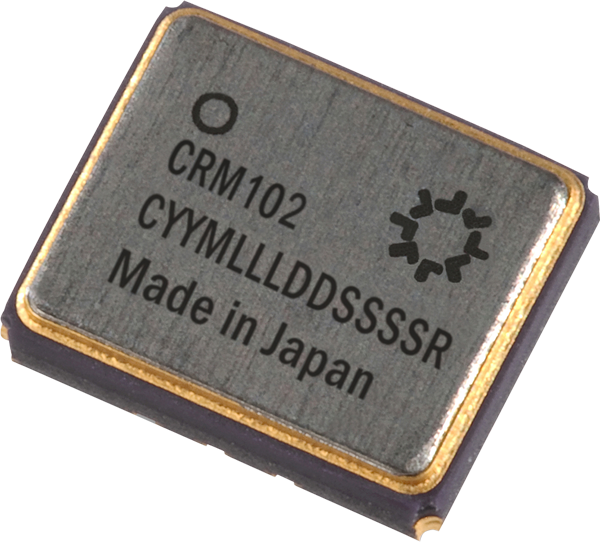

The Silicon Sensing CRM102 is a 1-axis integrated circuit gyro featuring a measuring range of 900 to 2700 °/s and a sensitivity of 1 mV/°/s. It operates on a supply voltage of 2.7 to 3.6 VDC, delivering an in-band quiescent noise of 0.18 °/s rms, a bias instability of 80 °/hr, a bias over temperature of ± 36 °/s, and a bandwidth of 160 hz. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Silicon Sensing
The Silicon Sensing CRM100 is a 1-axis IC gyro featuring configurable measuring ranges of 75, 150, 300, and 900 °/s with corresponding sensitivities of 12, 6, 3, and 1 mV/°/s. It operates on a supply voltage of 2.7 to 3.6 VDC, delivering an in-band quiescent noise of 0.18 °/s rms, a bias instability of 24 °/hr, and a bias over temperature of ± 1.5 °/s across a 160 hz bandwidth. Submit the exact part number, quantity, and application requirements for a quote on this Silicon Sensing component.
View product details →
Silicon Sensing

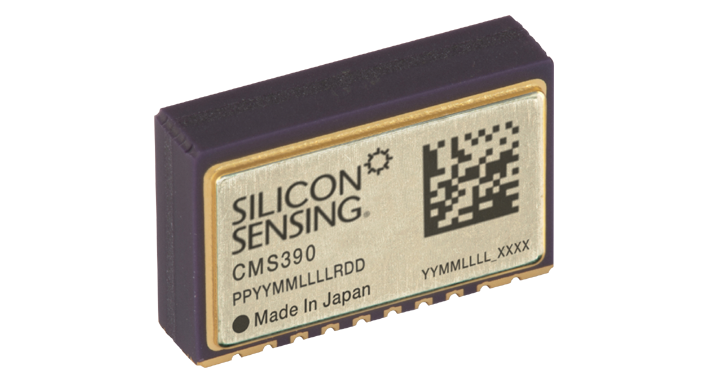

The Silicon Sensing CMS390 ORION is a 3-axis integrated circuit combi sensor featuring selectable angular ranges of ±150 and ±300 °/s alongside acceleration measuring ranges of ±2.5 and ±10 g. This device delivers sensitivities of 204.8 lsb/°/s at ±150°/s and 102.4 lsb/°/s at ±300°/s, paired with an in-band quiescent noise of 0.06 °/s rms and a bias instability of 10 °/hr. Operating on a 3.3 VDC supply voltage, it provides a 45 Hz gyroscope bandwidth, an accelerometer bandwidth ranging from 45 to 190 Hz, and a bias over temperature of ±1.75 °/s with ±30 to ±125 mg. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Silicon Sensing

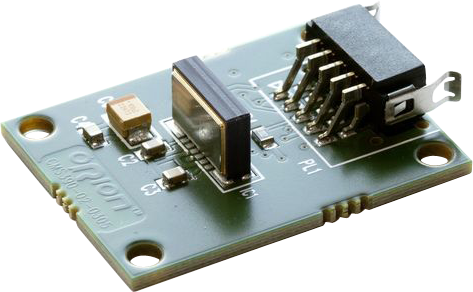

The Silicon Sensing CMS390-02-0302 is a 3-axis combi sensor evalboard featuring a PCB design that operates on a 3.3 VDC supply voltage. It offers selectable angular ranges of ±150 and ±300 °/s alongside acceleration measuring ranges of ±2.5 and ±10 g, complemented by an in-band quiescent noise of 0.06 °/s rms and a bias instability of 10 °/hr. The unit provides a gyro bandwidth of 45 hz and an accelerometer bandwidth ranging from 45 to 190 hz, with a bias over temperature of ±1.75 °/s and ±30 to ±125 mg. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Silicon Sensing

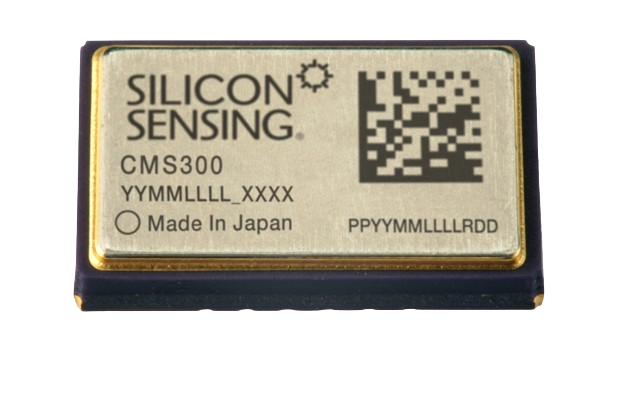

The Silicon Sensing CMS300 Orion is an IC combi sensor featuring 3 axes with selectable angular ranges of ±150 and ±300 °/s and acceleration limits of ±2.5 and ±10 g. This device delivers sensitivities of 204.8 lsb/°/s at ±150 °/s and 102.4 lsb/°/s at ±300 °/s, operating at a supply voltage of 3.3 VDC with a gyro bandwidth of 45 Hz and an accelerometer bandwidth ranging from 45 to 190 Hz. Key performance parameters include an in-band quiescent noise of 0.06 °/s rms, bias over temperature of ±1.75 °/s and ±30 to ±125 mg, and a bias instability of 10 °/hr. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Silicon Sensing

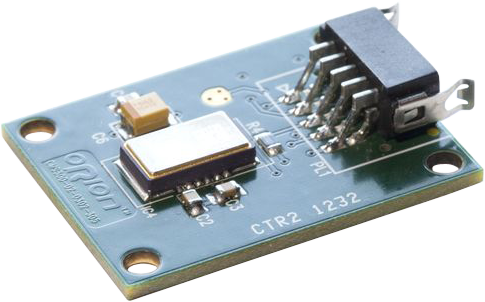

The Silicon Sensing CMS300-02-0302 is a 3-axis combi sensor evalboard featuring a PCB design with a supply voltage of 3.3 VDC. This device provides configurable measuring ranges of 150 and 300 °/s alongside 2.5 g and 10 g acceleration, supported by an in-band quiescent noise of 0.06 °/s rms, bias instability of 10 °/hr, and bandwidths of 45 hz for the gyro and 45 to 190 hz for the accelerometer. Operational stability includes a bias over temperature of ± 1.75 °/s and ± 30 to ± 125 mg. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Silicon Sensing
The Silicon Sensing CAS29 is a 2-axis Gemini evalboard featuring a DC response and a measuring range from 0.85 to 96 ± g with a bandwidth of 0 to 250 Hz. This amplified evaluation board operates on a supply voltage of 3.15 to 3.45 VDC, providing voltage and SPI outputs with sensitivity ratings spanning 10 to 1150 mV/g and 320 to 33500 lsb/g. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Silicon Sensing
The Silicon Sensing CAS21 is a 2-axis Gemini evalboard featuring a DC response with an amplified design and a measuring range of 0.85 to 96 ± g. Operating on a supply voltage of 3.15 to 3.45 VDC, this evaluation board delivers a bandwidth of 0 to 250 Hz with voltage and SPI outputs, alongside sensitivity ratings of 10 to 1150 mV/g and 320 to 33500 lsb/g. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Silicon Sensing
The Silicon Sensing 400046-0300 CRM 3-Axis EVB is a gyro evalboard featuring a 3-axis design with selectable angular ranges of 75, 150, 300, and 900 °/s. This evaluation board delivers sensitivities of 12, 6, 3, and 1 mV/°/s alongside an in-band quiescent noise of 0.18 °/s rms, a bias instability of 24 °/hr, and a bias over temperature of ± 1.5 °/s. Operating on a supply voltage of 2.7 to 3.6 VDC, the unit incorporates a 160 Hz bandwidth. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Silicon Sensing
The Silicon Sensing 400046-0200 CRM200 EVB is a 1-axis gyro evalboard featuring selectable angular ranges of ±75, 150, 300, and 900 °/s with corresponding sensitivities of 12, 6, 3, and 1 mV/°/s. This evaluation board operates on a supply voltage from 2.7 to 3.6 VDC and delivers a 160 Hz bandwidth, 0.18 °/s rms in-band quiescent noise, ±1.5 °/s bias over temperature, and a 24 °/hr bias instability. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
Silicon Sensing
The Silicon Sensing 400046-0100 CRM100 EVB is a 1-axis gyro evalboard featuring a supply voltage of 2.7 to 3.6 VDC and selectable measuring ranges of 75, 150, 300, and 900 °/s with corresponding sensitivities of 12, 6, 3, and 1 mV/°/s. This evaluation board delivers a 160 Hz bandwidth, 0.18 °/s rms in-band quiescent noise, a bias instability of 24 °/hr, and a bias over temperature of ± 1.5 °/s. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
