AC-Motoren
ACMAAS2A080901J00000

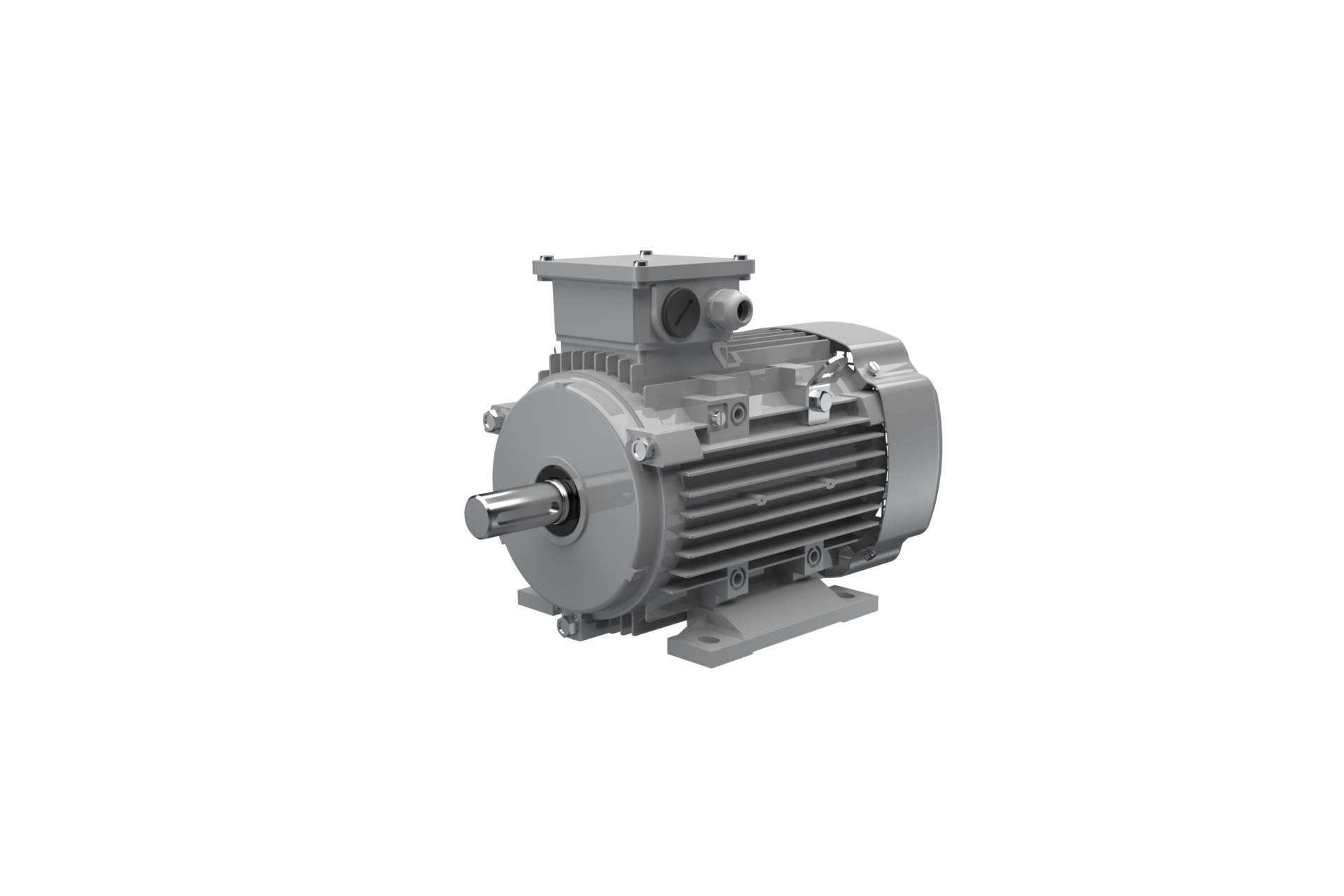

AC-Motoren ACMAAS2A080901J00000 — Asynchronous-Motor ACM 90 S 8/HE
The AC-Motoren ACMAAS2A080901J00000 is an Asynchronous-Motor ACM 90 S 8/HE featuring a regular motor type with 8 poles and frame size 90. This component operates on 230/400 V delivering a power OP1 of 0,37 kW and a speed OP1 of 675 1/min under an S1 duty type. It is configured with B14b mounting, insulation class F, and IP55 protection class. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued AC-Motoren references — within one business day.
- Manufacturer
- AC-Motoren
- Part number
- ACMAAS2A080901J00000
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to ACMAAS2A080901J00000.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Name
- Asynchronous-Motor ACM 90 S 8/HE
- Catalog Source
- AC-Motoren official English catalog
- Mounting
- B14b
- Frame size
- 90
- Power OP1 (kW)
- 0,37
- Voltage OP1
- 230/400 V
- Motor type
- Regular
- Speed OP1 (1/min)
- 675
- Insulation class
- F
- Protection class (IP)
- IP55
- Pole
- 8
- Duty type OP1
- S1
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against AC-Motoren ACMAAS2A080901J00000. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
