Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

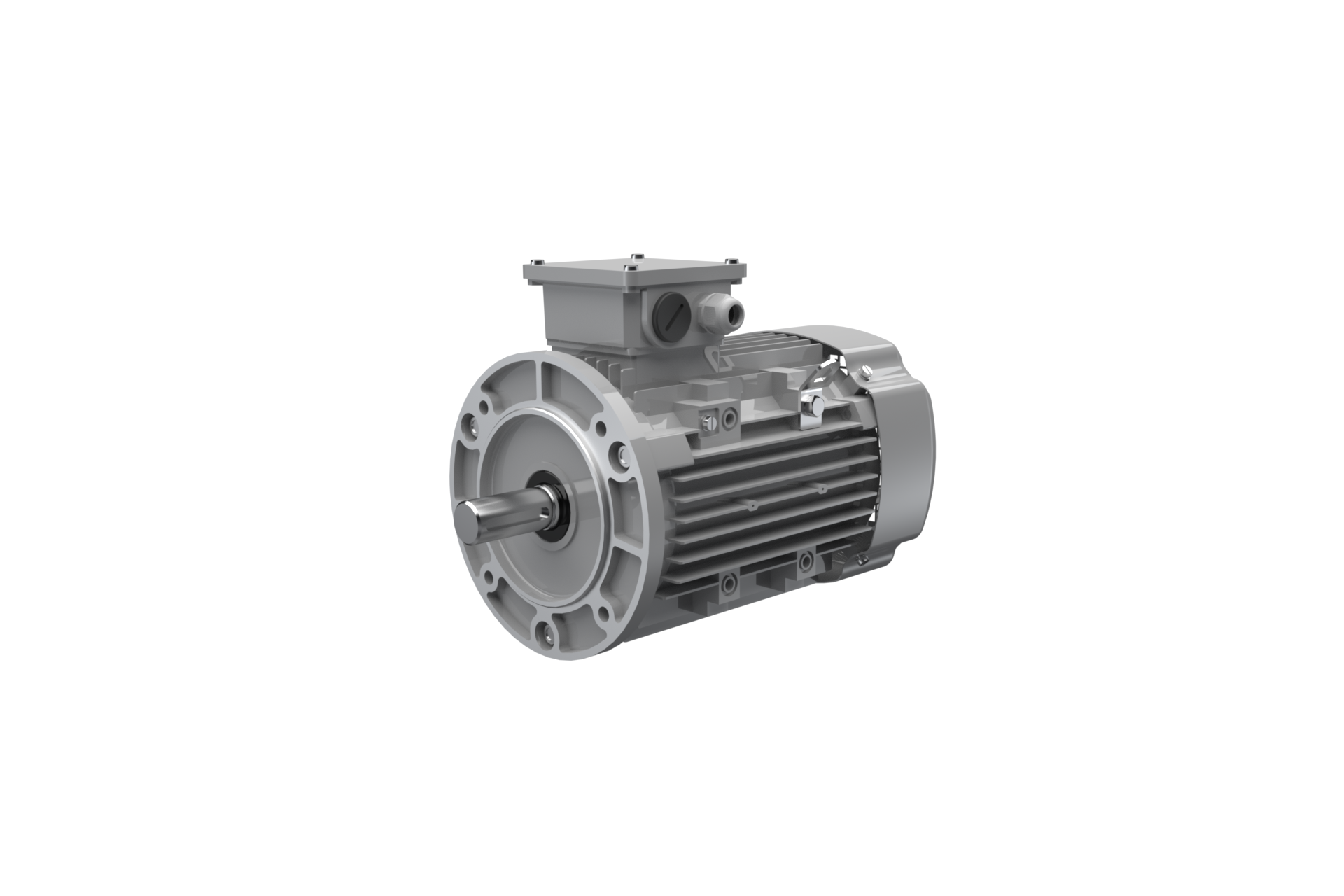

Reference imageConfirm configuration by manufacturer part number.
AC-Motoren
ACMAAS2B020504J00000
AC-Motoren ACMAAS2B020504J00000 — Asynchronous-Motor ACM 56 B 2/HE
The AC-Motoren ACM 56 B 2/HE is a regular 2-pole asynchronous motor featuring a frame size of 56 and a B34b mounting configuration. This unit delivers an operational power of 0,12 kW at 230/400 V and a speed of 2720 1/min under S1 duty type. It is built with insulation class F and an IP55 protection class rating. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued AC-Motoren references — within one business day.
- Manufacturer
- AC-Motoren
- Part number
- ACMAAS2B020504J00000
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to ACMAAS2B020504J00000.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Name
- Asynchronous-Motor ACM 56 B 2/HE
- Catalog Source
- AC-Motoren official English catalog
- Mounting
- B34b
- Frame size
- 56
- Power OP1 (kW)
- 0,12
- Voltage OP1
- 230/400 V
- Motor type
- Regular
- Speed OP1 (1/min)
- 2720
- Insulation class
- F
- Protection class (IP)
- IP55
- Pole
- 2
- Duty type OP1
- S1
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against AC-Motoren ACMAAS2B020504J00000. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
