AC-Motoren
ACMAAS3A062001W00002

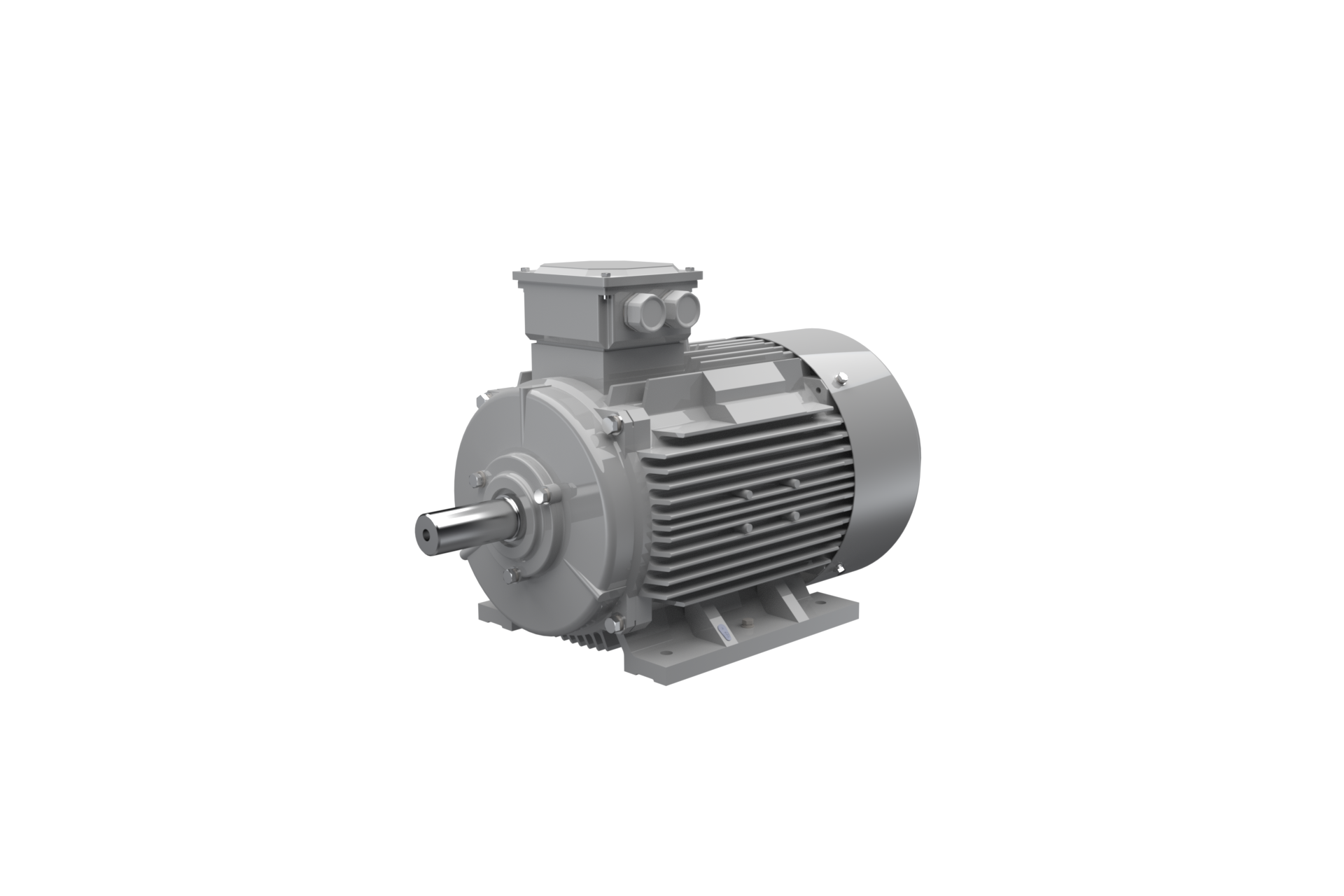

AC-Motoren ACMAAS3A062001W00002 — Asynchronous-Motor ACM 200 LA 6/PHE
The AC-Motoren ACMAAS3A062001W00002 is a regular 6-pole asynchronous motor, model ACM 200 LA 6/PHE, featuring a frame size of 200 and a B3 mounting configuration. This industrial component delivers 22 kW of power at an operating speed of 980 1/min and a voltage of 400/690 V under an S1 duty type. It is constructed with insulation class F and an IP55 protection class rating. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued AC-Motoren references — within one business day.
- Manufacturer
- AC-Motoren
- Part number
- ACMAAS3A062001W00002
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to ACMAAS3A062001W00002.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Name
- Asynchronous-Motor ACM 200 LA 6/PHE
- Catalog Source
- AC-Motoren official English catalog
- Mounting
- B3
- Frame size
- 200
- Power OP1 (kW)
- 22
- Voltage OP1
- 400/690 V
- Motor type
- Regular
- Speed OP1 (1/min)
- 980
- Insulation class
- F
- Protection class (IP)
- IP55
- Pole
- 6
- Duty type OP1
- S1
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against AC-Motoren ACMAAS3A062001W00002. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
