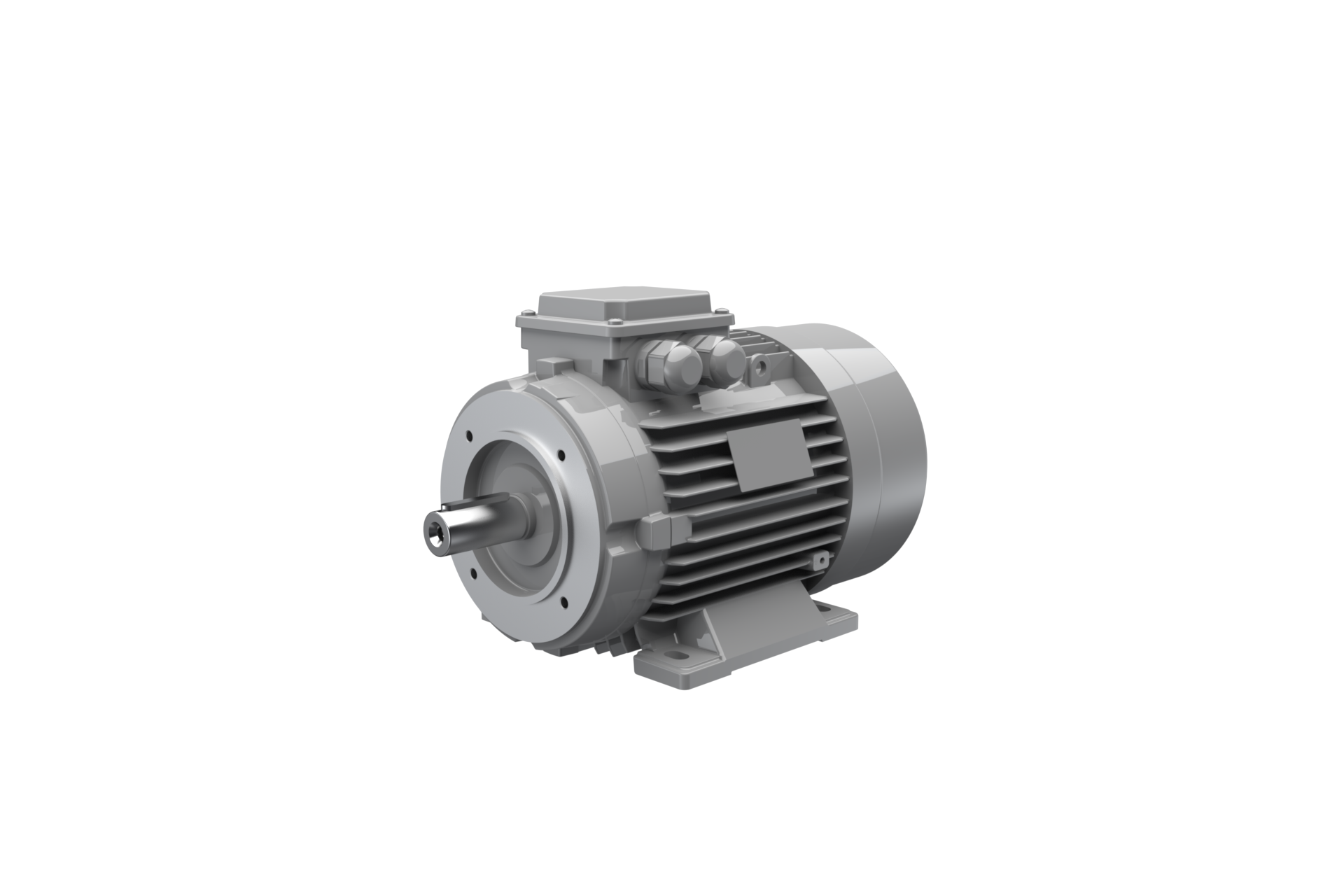

Reference imageConfirm configuration by manufacturer part number.
AC-Motoren
ACMAAS3B040906M00000
AC-Motoren ACMAAS3B040906M00000 — Asynchronous-Motor ACM 90 L 4/PHE
The AC-Motoren ACMAAS3B040906M00000 is an Asynchronous-Motor ACM 90 L 4/PHE featuring a regular motor type with 4 poles and a frame size of 90 in a B34a mounting configuration. This unit operates on 230/400 V voltage at an OP1 speed of 1435 1/min, delivering 1,5 kW of power OP1 under an S1 duty type OP1. Constructed with insulation class F and protection class IP55, it meets exact operational specifications. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued AC-Motoren references — within one business day.
- Manufacturer
- AC-Motoren
- Part number
- ACMAAS3B040906M00000
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to ACMAAS3B040906M00000.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Product Name
- Asynchronous-Motor ACM 90 L 4/PHE
- Catalog Source
- AC-Motoren official English catalog
- Mounting
- B34a
- Frame size
- 90
- Power OP1 (kW)
- 1,5
- Voltage OP1
- 230/400 V
- Motor type
- Regular
- Speed OP1 (1/min)
- 1435
- Insulation class
- F
- Protection class (IP)
- IP55
- Pole
- 4
- Duty type OP1
- S1
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against AC-Motoren ACMAAS3B040906M00000. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
