151B3108

Name: HYDRAULIC MOTOR OMV630 151B3108
Brand: Danfoss Power Solutions

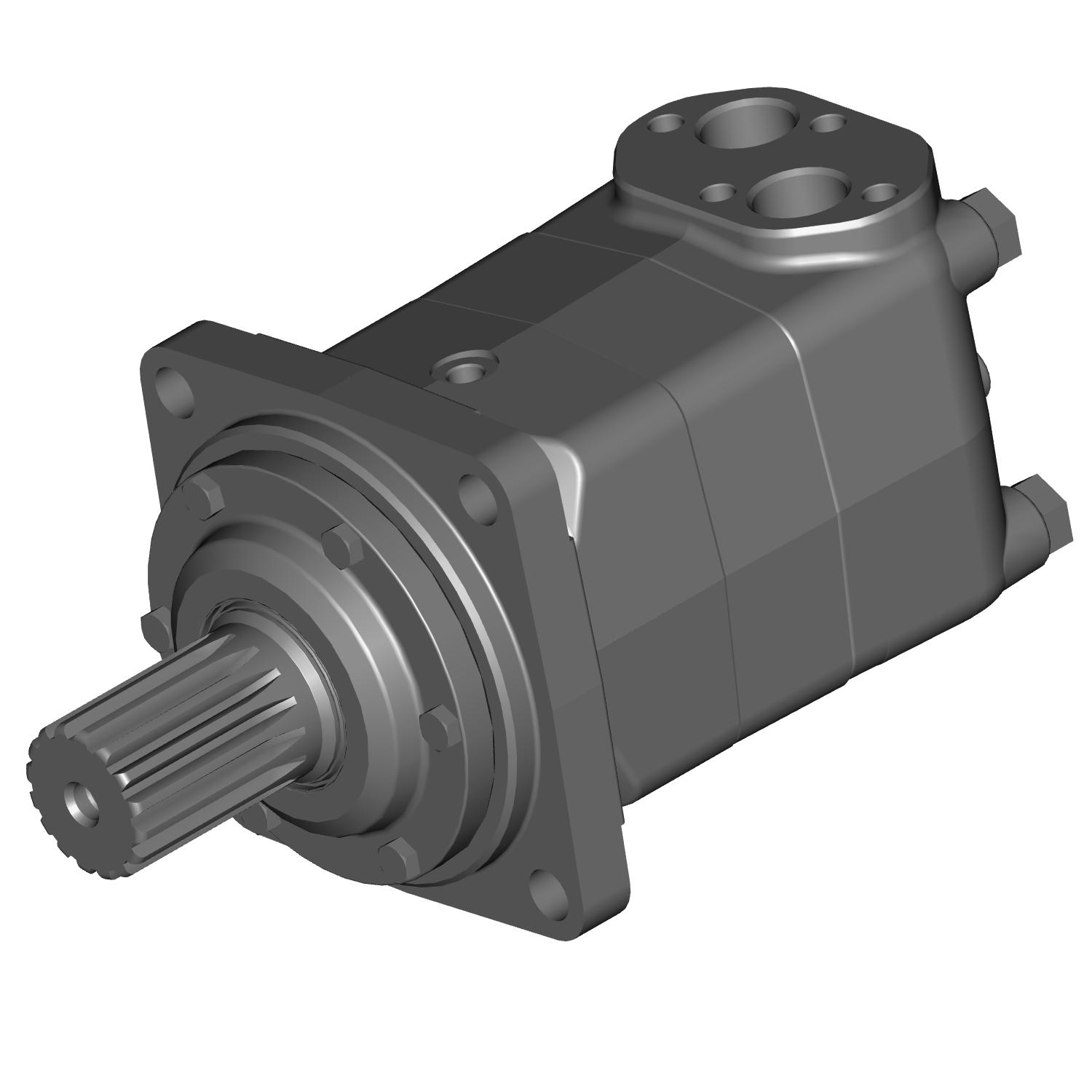

HYDRAULIC MOTOR OMV630 151B3108

The Danfoss Power Solutions OMV Series part number 151B3108 is a standard OMV motor featuring a geometric displacement of 629.1 cm3/r (38.39 in3/r) and a 630 motor size. This unit utilizes a disc valve system with a valve drive, a Geroler orbital gearwheel set, a standard G 1 connection size, and a 2 1/8 inch splined shaft with a 16-tooth profile. It includes a standard mounting flange type with a 4-bolt square configuration measuring 160.0 x 11.0 mm pilot diameter and height, a 200.0 mm bolt circle diameter, and an 18.0 mm hole. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Danfoss Power Solutions references — within one business day.

Manufacturer: Danfoss Power Solutions
Part number: 151B3108
Product series: OMV Series
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 151B3108.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationAvailable technical documents are stored and served from our system.

Verified configuration

Technical Specifications

Anschlussgröße:: G 1
Baugröße:: 630
Dichtsatz:: 151B0129
Lackierung:: keine
Leckölanschluss:: Standard
Montageflansch:: Standard
Motortype:: OMV
Wellenausführung:: Vielkeilprofil - 16Z
Wellengröße:: 2 1/8 inch
Model Code: OMV-0630-A-NN-G34-AE-1E-D20-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN
Motor Series: OMV Series
Valve system: Disc valve with valve drive
Orbital gearwheel set type: Geroler
Motor Size: 630
Geometric displacement [cm3/r [in3/r]]: 629.1 [38.39]
Motor type: Standard
Motor function: Standard
Mounting Flange Type: 4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]: 160.0 x 11.0, 200.0, 18.0 [6.30 x 0.43, 7.87, 0.71]
Shaft type: Splined
Shaft dimension: Dia. 2 1/8 inch, 16T, M12 x 1.75-6H thread in shaft end
Shaft Key: n/a
Main port thread type: BSP
Main port style: Sideport - staggered
Main port dimension: G 1, 4 x M12 block mounting threads
Drain Port Dimension: G 1/4
Brake Release Port Dimension: n/a
Painted: No
Paint information: n/a
Special features hardware: Standard
Special Features Assembly: Standard
Dust seal: Standard
Shaft Seal: NBR - Standard
Seal Kit: 151B0129
Front bearing type: Tapered roller bearing
Rear bearing type: Tapered roller bearing
Orbital gearwheel set: Standard
Check valve function: Yes
Hydraulic valve function: None
Sensor: None
Packaging: Single pack
Name Tag: Danfoss name tag
Design code: 2
