Danfoss Power Solutions
151B3124

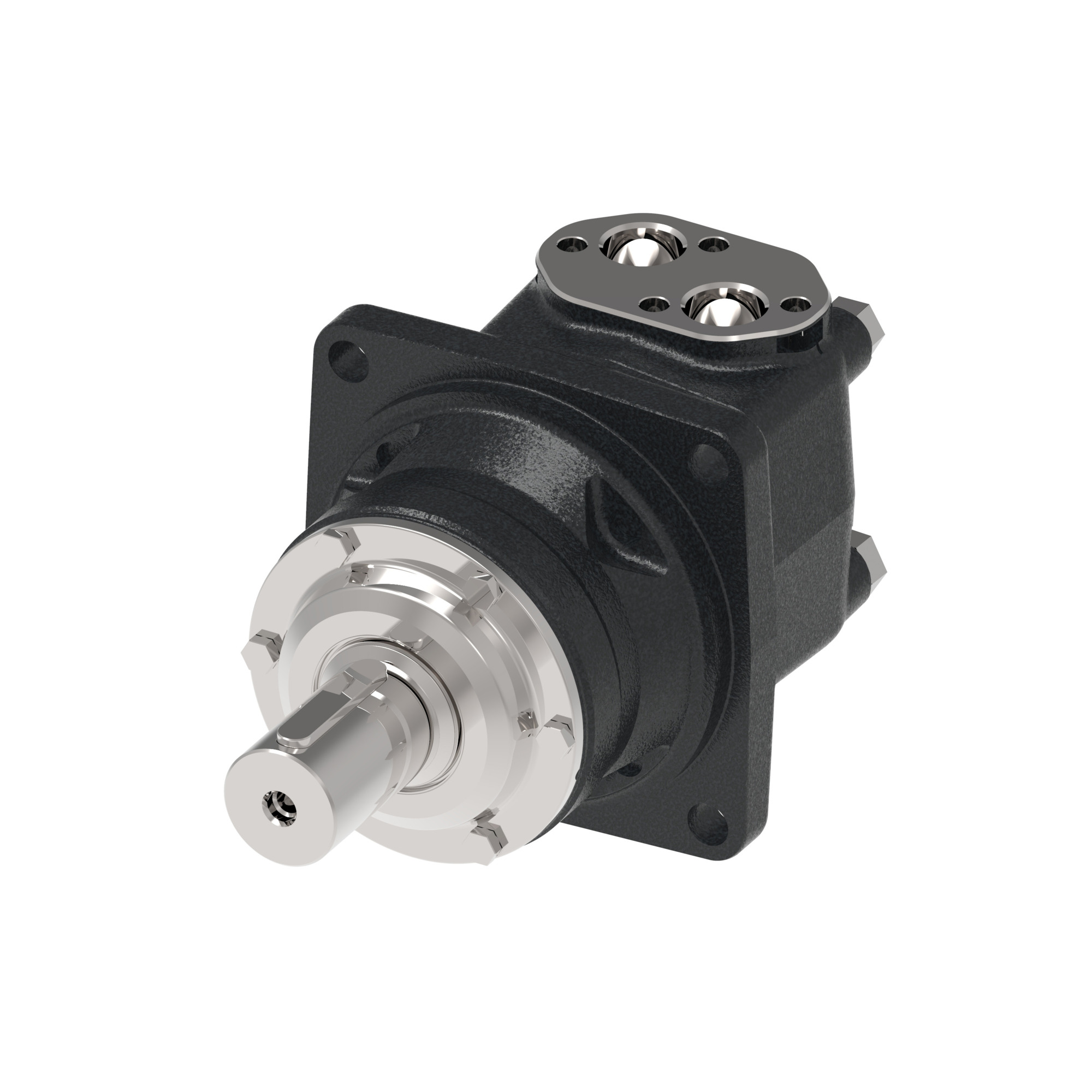

HYDRAULIC MOTOR OMVW800 151B3124
The Danfoss Power Solutions OMV Series OMVW wheel motor, part number 151B3124, features a geometric displacement of 801.8 cm3/r with an 800 motor size and a disc valve system with valve drive using a Geroler orbital gearwheel set type. This unit includes a G 1 connection size, a standard drain line connection, a tapered shaft design with a 60 mm tapered 1 size, and an unpainted finish alongside a 151B0129 seal set. It utilizes a 4-bolt wheel mounting flange with pilot dimensions of 180.0 x 10.6 mm and a bolt circle diameter of 224.0 mm under model code OMV-0800-B-NN-W53-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Danfoss Power Solutions references — within one business day.
- Manufacturer
- Danfoss Power Solutions
- Part number
- 151B3124
- Product series
- OMV Series
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151B3124.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationAvailable technical documents are stored and served from our system.
Verified configuration
Technical Specifications
- Anschlussgröße:
- G 1
- Baugröße:
- 800
- Dichtsatz:
- 151B0129
- Lackierung:
- keine
- Leckölanschluss:
- Standard
- Montageflansch:
- Wheel
- Motortype:
- OMVW
- Wellenausführung:
- kegelig - Konus 1
- Wellengröße:
- 60 mm
- Model Code
- OMV-0800-B-NN-W53-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN
- Motor Series
- OMV Series
- Valve system
- Disc valve with valve drive
- Orbital gearwheel set type
- Geroler
- Motor Size
- 800
- Geometric displacement [cm3/r [in3/r]]
- 801.8 [48.93]
- Motor type
- Wheel
- Motor function
- Standard
- Mounting Flange Type
- 4 Bolt - Wheel
- Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]
- 180.0 x 10.6, 224.0, 18.0 [7.08 x 0.42, 8.82, 0.71] Rear: 194.0 x 3.4, 224.0, 18.0 [7.64 x 0.13, 7.87, 0.71]
- Shaft type
- TAPERED
- Shaft dimension
- Dia. 60 mm, 1:10, 3 x M42 thread in shaft end
- Shaft Key
- Rectangular key, B16 x 10 x 32 mm, DIN 6885
- Main port thread type
- BSP
- Main port style
- Sideport - staggered
- Main port dimension
- G 1, 4 x M12 block mounting threads
- Drain Port Dimension
- G 1/4
- Brake Release Port Dimension
- n/a
- Painted
- No
- Paint information
- n/a
- Special features hardware
- Standard
- Special Features Assembly
- Standard
- Dust seal
- Standard
- Shaft Seal
- NBR - Standard
- Seal Kit
- 151B0129
- Front bearing type
- Tapered roller bearing
- Rear bearing type
- Tapered roller bearing
- Orbital gearwheel set
- Standard
- Check valve function
- Yes
- Hydraulic valve function
- None
- J:Sensor
- None
- Packaging
- Single pack
- Name Tag
- Danfoss name tag
- Design code
- 2
