Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

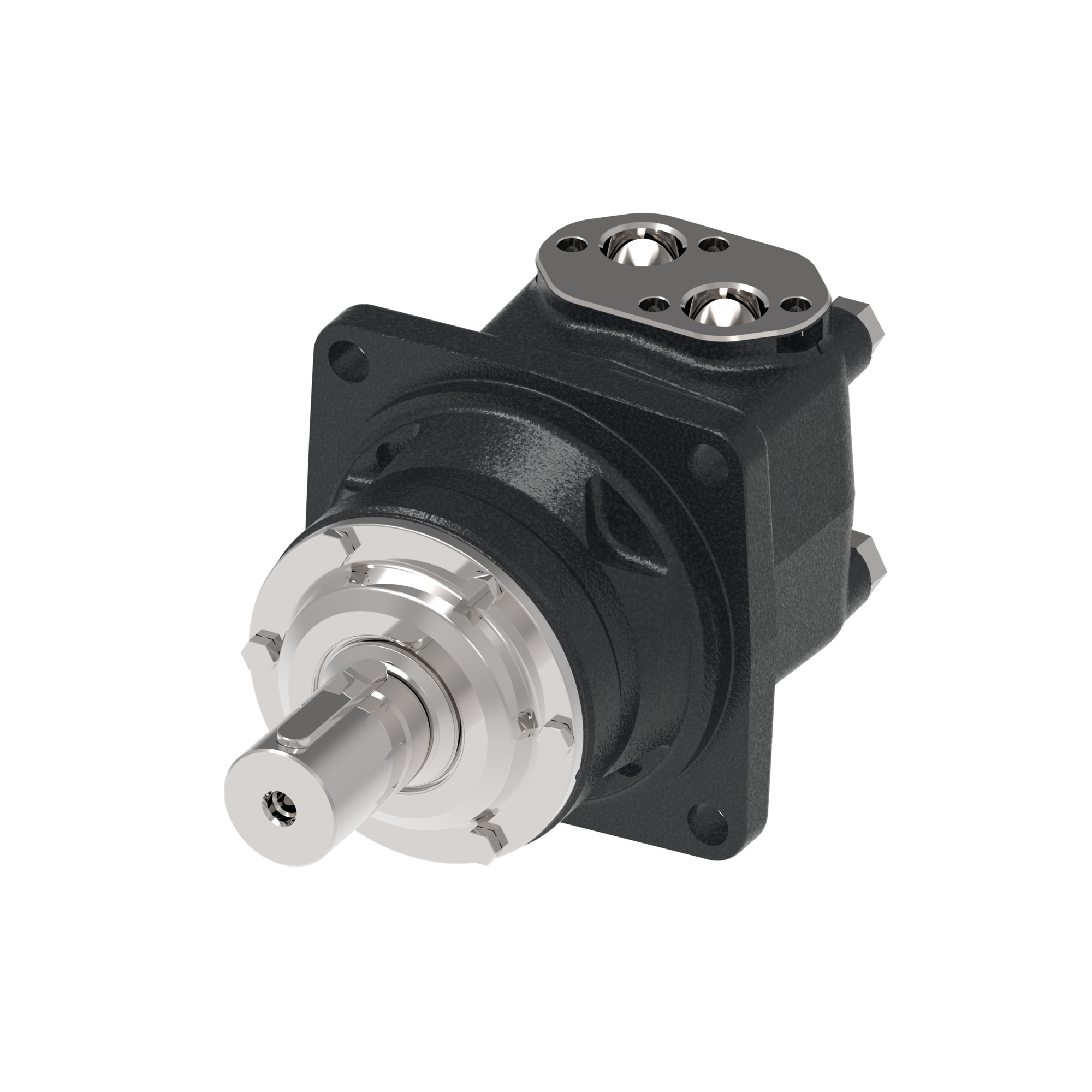

Reference imageConfirm configuration by manufacturer part number.
Danfoss Power Solutions
151B3159
HYDRAULIC MOTOR OMVW800HD 151B3159
The Danfoss Power Solutions OMV Series heavy-duty OMVW HD hydraulic motor features a geometric displacement of 801.8 cm3/r (48.93 in3/r) and utilizes a Geroler orbital gearwheel set with a disc valve and valve drive system. This size 800 wheel motor incorporates a 4-bolt wheel mounting flange with a 60 mm tapered shaft, a G 1 connection size, and a standard drain port without paint finish. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Danfoss Power Solutions references — within one business day.
- Manufacturer
- Danfoss Power Solutions
- Part number
- 151B3159
- Product series
- OMV Series
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 151B3159.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationAvailable technical documents are stored and served from our system.
Verified configuration
Technical Specifications
- Anschlussgröße:
- G 1
- Baugröße:
- 800
- Dichtsatz:
- 151B0162
- Lackierung:
- keine
- Leckölanschluss:
- Standard
- Montageflansch:
- Wheel
- Motortype:
- OMVW HD
- Wellenausführung:
- kegelig - Konus 1
- Wellengröße:
- 60 mm
- Model Code
- OMV-0800-B-EB-W53-AE-1E-F22-A-A-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN
- Motor Series
- OMV Series
- Valve system
- Disc valve with valve drive
- Orbital gearwheel set type
- Geroler
- Motor Size
- 800
- Geometric displacement [cm3/r [in3/r]]
- 801.8 [48.93]
- Motor type
- Wheel
- Motor function
- Heavy-Duty version, Reinforced parts
- Mounting Flange Type
- 4 Bolt - Wheel
- Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]
- 180.0 x 10.6, 224.0, 18.0 [7.08 x 0.42, 8.82, 0.71] Rear: 194.0 x 3.4, 224.0, 18.0 [7.64 x 0.13, 7.87, 0.71]
- Shaft type
- TAPERED
- Shaft dimension
- Dia. 60 mm, 1:10, 3 x M42 thread in shaft end
- Shaft Key
- Rectangular key, B16 x 10 x 32 mm, DIN 6885
- Main port thread type
- BSP
- Main port style
- Sideport - staggered
- Main port dimension
- G 1, 4 x M12 block mounting threads
- Drain Port Dimension
- G 1/4
- Brake Release Port Dimension
- n/a
- Painted
- No
- Paint information
- n/a
- Special features hardware
- Standard
- Special Features Assembly
- Standard
- Dust seal
- Standard
- Shaft Seal
- NBR - Standard
- Seal Kit
- 151B0162
- Front bearing type
- Tapered roller bearing
- Rear bearing type
- Tapered roller bearing
- Orbital gearwheel set
- Standard
- Check valve function
- No
- Hydraulic valve function
- None
- J:Sensor
- None
- Packaging
- Single pack
- Name Tag
- Danfoss name tag
- Design code
- 2
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Danfoss Power Solutions 151B3159. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
