Danfoss Power Solutions
5115901

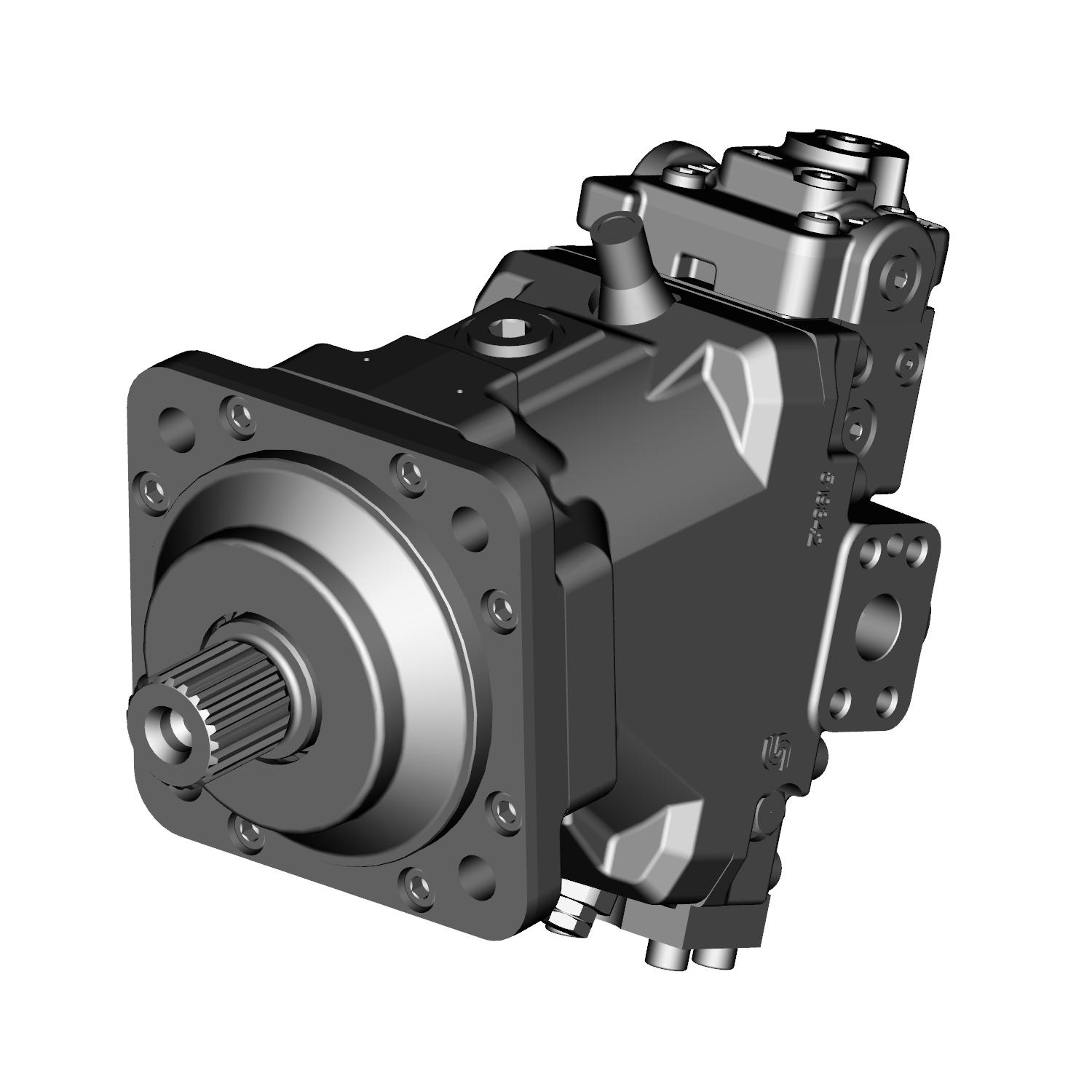

HYDRAULIC MOTOR 51D110-1 / 5115901
Danfoss Power Solutions manufactures the Series 51 part number 5115901, featuring a 109.9 ccm displacement and a DIN 4-hole mounting flange. This unit operates at a maximum rotational speed of 2800 U/min and utilizes a hydraulic PCOR control with factory settings at Qmin 55 ccm and 300 bar, alongside a DIN 5480 splined input shaft (W45x2x30x21x9g) and a 7 l/min flushing valve. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Danfoss Power Solutions references — within one business day.
- Manufacturer
- Danfoss Power Solutions
- Part number
- 5115901
- Product series
- Series 51
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 5115901.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationAvailable technical documents are stored and served from our system.
Verified configuration
Technical Specifications
- Anbauflansch:
- DIN 4-Loch
- Drehzahl:
- 2800 U/min
- Optionen:
- Spülventil 7 l/min
- Schluckvolumen:
- 109,9 ccm
- Verstellung:
- hydr. PCOR
- Wellenausführung:
- Zahnwelle DIN 5480 (W45x2x30x21x9g)
- Werkseinstellung:
- Qmin 55 ccm, PCOR 300 bar
- F: MAX. DISPLACEMENT SETTING
- B:90% maximum
- G: ENDCAP PORTS
- R:side,SAE
- J: THRESHOLD / RANGE
- N:no adjustment
- K: LOOP FLUSHING VALVE
- E6:6l/min,16bar
- L: INPUT SHAFT
- D4:W45x2x30x21x9g DIN5480
- M: CONTROLS
- TA:pressure compensator
- N: SERVO PRESSURE
- C2:int,PCOR A+B,w/o BPD
- P: HIGH PRESSURE SETTING
- AA:6.2bar
- S: CONTROL RAMP
- N: for all controls
- SERIES 51 MOTOR TYPE
- 51D110-1-
- T: CONTROL ORIFICES
- X1
- V: THRESHOLD SETTING
- 00:no adjustment
- W: SPECIAL HARDWARE FEATURES
- NNN:standard,no spec hardware
- Y: MIN. DISPLACEMENT SETTING
- 055ccm
- Z: PCOR SETTING
- 30:300bar
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Danfoss Power Solutions 5115901. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
