EPC3000

Name: Eurotherm EPC3000 — EPC3000 programmable controllers
Brand: Eurotherm

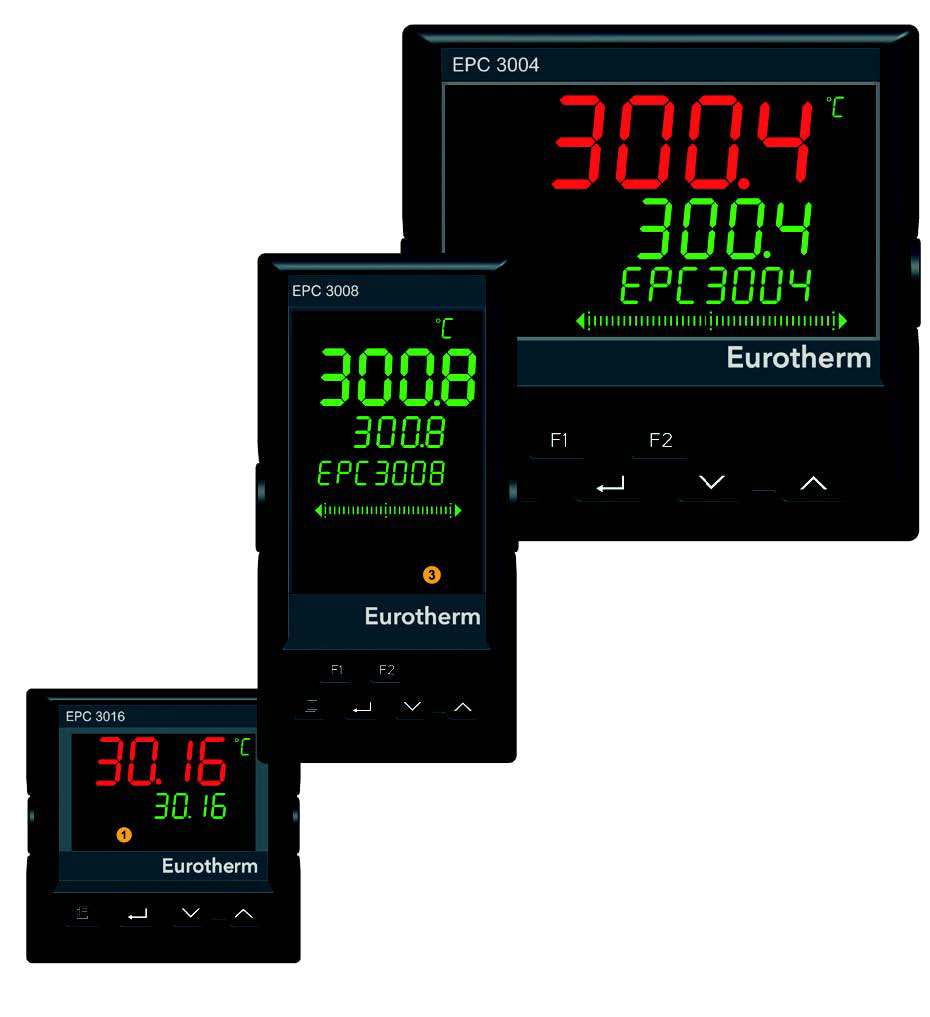

Eurotherm EPC3000 — EPC3000 programmable controllers

The Eurotherm EPC3000 programmable controllers are available in 1/16, 1/4, and 1/8 DIN panel sizes featuring high-visibility LCD three-color multifunction displays and supply voltages of 24V dc/ac or 85-264V ac. These controllers include Achilles CRT Level 1 Cybersecurity, EN13849 PLc, and Factory Mutual approvals, alongside IP66/NEMA4x washdown or IP65/NEMA 12 standard ingress protection. Supported inputs encompass TC, PT100/PT1000 RTD, mV, mA, and Zirconia, delivering PV accuracy under 0.1% with low thermal drift for On/Off, PID, VP, and Carbon Potential control types. Submit the exact part number, quantity, and application requirements for an EPC3000 price quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Eurotherm references — within one business day.

Manufacturer: Eurotherm
Part number: EPC3000
Product series: EPC3000 programmable controllers
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to EPC3000.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Product Name: EPC3000 programmable controllers
Catalog Source: Official Eurotherm US catalog
Panel size (DIN): 1/16, 1/4, 1/8
IP Rating: Washdown: IP66, NEMA4x (Indoor Use), Standard: IP65, NEMA 12
Display Type: High Visibility LCD three color multifunction display, 3008/3004 4.5,5 Digit PV, 2 starburst, 3016 4 Digit PV, 1 starburst
Supply Voltage: 24V dc/ac, 85-264V ac
Safety-approvals: Achilles CRT Level 1 Cybersecurity, EN13849 PLc, Factory Mutual (FM) approved
Input Type: TC, PT100/PT1000 RTD, mV, mA, Zirconia
PV Accuracy: <0.1% low thermal drift
Control Types: On/Off, PID, VP, Carbon Potential
Special Features: Application Templates, Atmosphere Control, Gain Scheduling, Maths and Totalizer Function, Native Ethernet, Recipes, Text Messaging, Dual input control
SP Programmer: Up to 20 programmes of 8 segments or 10 programmes of 24 segments
Analogue IP/OP: 3008/3004: 2PV, 1CT, 3 Isolated DC OP, 3016: 1PV, 1CT, 1 Aux (RSP), 2 Isolated DC OP, In 4, Out 3
Digital IP/OP: 8 (max) Open Collector DIO 3008/3004, In 5, Out 4
Digital Comms: BACNet, EIA-485, EtherNet/IP, Modbus RTU, Modbus TCP
User Wiring: Yes
Alarm Types: Hi, Lo, Dev, Sensor fault, Heater fail, Rate of Change, Event

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Eurotherm EPC3000. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
