Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

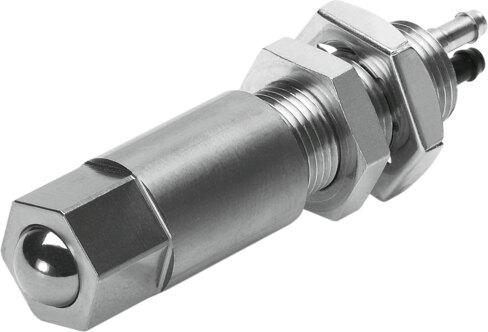

Reference imageConfirm configuration by manufacturer part number.
Festo
10033
End stop limit switch SDK-4-PK-3
The Festo 10033 is a directly controlled mechanical industrial component featuring a 3/2-way, closed, monostable valve function with a ball seat structural design and soft sealing principle. It operates within a pressure range of 0 bar to 8 bar, provides a normal nominal flow rate of 16 l/min at a 0.6 mm nominal width, and requires an actuating force of 17 N with a mechanical spring reset method. This non-reversible component utilizes PK-3 pneumatic working and connection ports, functions with compressed air as per ISO 8573-1:2010 [7:4:4] across a medium and ambient temperature range of -10 °C to 80 °C, and includes an adjustable exhaust air function alongside through-hole mounting. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10033
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10033.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Mechanical
- Normal nominal ow rate (normalized to DIN 1343)
- 16 l/min
- Pneumatic working port
- PK-3
- Operating pressure
- 0 bar...8 bar
- Structural design
- Ball seat
- Reset method
- Mechanical spring
- Nominal width
- 0.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Type of control
- directly
- Flow direction
- Non-reversible
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...80 °C
- Ambient temperature
- -10 °C...80 °C
- Actuating force
- 17 N
- Type of mounting
- With through-hole
- Pneumatic connection 1
- PK-3
- Pneumatic connection 2
- PK-3
- Pneumatic connection 3
- Not ducted
- Official Festo technical specifications
- Valve function 3/2-way, closed, monostable Actuation type Mechanical Normal nominal ow rate (normalized to DIN 1343) 16 l/min Pneumatic working port PK-3 Operating pressure 0 bar...8 bar Structural design Ball seat Reset method Mechanical spring Nominal width 0.6 mm Exhaust air function Adjustable Sealing principle Soft Type of control directly Flow direction Non-reversible Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) LABS (PWIS) conformity VDMA24364-B1/B2-L Temperature of medium -10 °C...80 °C Ambient temperature -10 °C...80 °C Actuating force 17 N Type of mounting With through-hole Pneumatic connection 1 PK-3 Pneumatic connection 2 PK-3 Pneumatic connection 3 Not ducted 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10033. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
