Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
10057

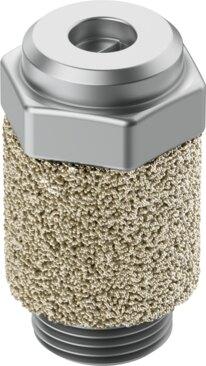

Exhaust air flow control valve GRE-1/8-NPT
The Festo 10057 is an industrial component featuring a sound pressure flow control function with an integrated muffler and a 1/8 NPT pneumatic connection. Designed for screw-in mounting, this part utilizes a slotted screw adjusting element to regulate standard flow rates from 0 l/min to 520 l/min across an operating pressure range of 0 bar to 10 bar. It operates within ambient and medium temperatures of -10 °C to 70 °C using compressed air as per ISO 8573-1:2010 [7:-:-], where oil lubrication is possible and required for further use. The RoHS-compliant component conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10057
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10057.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Sound pressure ow control function
- Selection of additional function
- with muffler
- Pneumatic connection 1
- 1/8 NPT
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Standard ow rate 6->0 bar
- 0 l/min...520 l/min
- Operating pressure
- 0 bar...10 bar
- Ambient temperature
- -10 °C...70 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...70 °C
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Valve function Sound pressure ow control function Selection of additional function with muffler Pneumatic connection 1 1/8 NPT Adjusting element Slotted screw Type of mounting Screw-in Standard ow rate 6->0 bar 0 l/min...520 l/min Operating pressure 0 bar...10 bar Ambient temperature -10 °C...70 °C Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Operation with oil lubrication possible (required for further use) LABS (PWIS) conformity VDMA24364-B1/B2-L Temperature of medium -10 °C...70 °C Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10057. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
