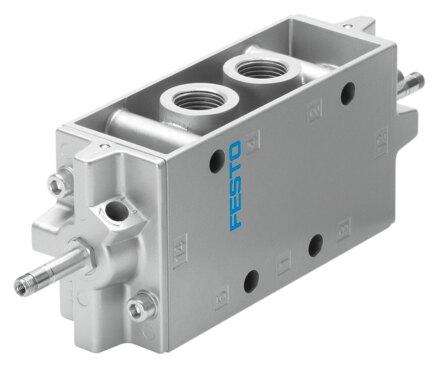

Reference imageConfirm configuration by manufacturer part number.
Festo
10166
Air solenoid valve JMFH-5-1/2
The Festo 10166 is a 5/2-way bistable industrial component featuring a piloted, plate seat structural design with a soft sealing principle and a negative overlap lap. It delivers a normal nominal flow rate of 4500 l/min through G1/2 pneumatic working ports, operating within a pressure range of 0.2 MPa to 0.8 MPa and a nominal width of 14 mm. Equipped with a detenting manual override, adjustable exhaust air function, and IP65 degree of protection, this c UL us-recognized unit requires a separately ordered solenoid coil for electrical actuation. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10166
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10166.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 52 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4500 l/min
- Pneumatic working port
- G1/2
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Structural design
- Plate seat
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65
- Nominal width
- 14 mm
- Width dimension
- 69 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- b-value
- 0.3
- C value
- 19.5 l/sbar
- Max. switching frequency
- 25 Hz
- Changeover time
- 20 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse on 1 signal
- 3700 µs
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Official Festo technical specifications
- Valve function 5/2-way, bistable Actuation type Electrical Width 52 mm Normal nominal ow rate (normalized to DIN 1343) 4500 l/min Pneumatic working port G1/2 Operating voltage Via solenoid coil, to be ordered separately Operating pressure 0.2 MPa...0.8 MPa 2 bar...8 bar Structural design Plate seat Certication c UL us - recognized (OL) Degree of protection IP65 Nominal width 14 mm Width dimension 69 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Manual override Detenting Type of control Piloted Flow direction Non-reversible Lap Negative overlap b-value 0.3 C value 19.5 l/sbar Max. switching frequency 25 Hz Changeover time 20 ms Max. positive test pulse with 0 signal 2200 µs Max. negative test pulse on 1 signal 3700 µs Coil characteristics See solenoid coil, to be ordered separately Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Storage temperature -20 °C...60 °C 6/5/26 –
