Festo
10336

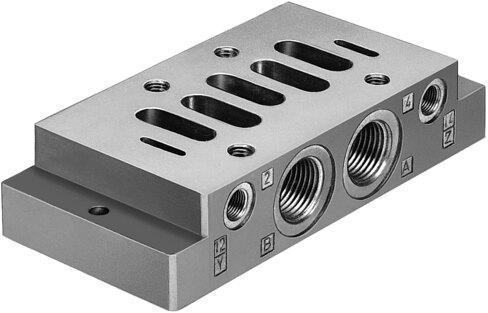

Individual subbase NAS-1/2-3A-ISO
This Festo industrial component, part number 10336, features a die-cast aluminum sub-base with a product weight of 360 g and mounts via through-hole installation. It conforms to ISO 5599-1 and VDMA 24345-A-3 standards, carries UL recognition, and complies with VDMA 24364-B1/B2-L LABS (PWIS) requirements. The unit includes G1/2 pneumatic connections for ports 1, 2, 3, 4, and 5, alongside a G1/8 pilot air port 12/14. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10336
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10336.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Designation to VDMA
- VDMA 24345-A-3
- Conforms to standard
- ISO 5599-1
- Certication
- UL - Recognized (OL)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 360 g
- Type of mounting
- With through-hole
- Pilot air port 12/14
- G1/8
- Pneumatic connection 1
- G1/2
- Pneumatic connection 2
- G1/2
- Pneumatic connection 3
- G1/2
- Pneumatic connection 4
- G1/2
- Pneumatic connection 5
- G1/2
- Material of sub-base
- Die-cast aluminum
- Official Festo technical specifications
- Designation to VDMA VDMA 24345-A-3 Conforms to standard ISO 5599-1 Certication UL - Recognized (OL) LABS (PWIS) conformity VDMA24364-B1/B2-L Product weight 360 g Type of mounting With through-hole Pilot air port 12/14 G1/8 Pneumatic connection 1 G1/2 Pneumatic connection 2 G1/2 Pneumatic connection 3 G1/2 Pneumatic connection 4 G1/2 Pneumatic connection 5 G1/2 Material of sub-base Die-cast aluminum 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10336. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
