10337

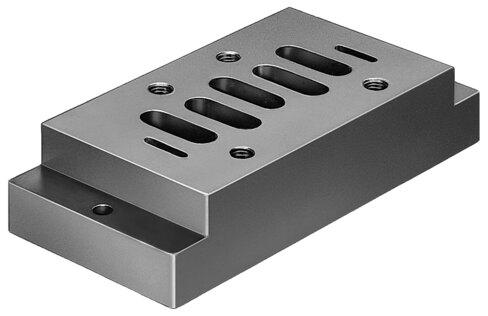

Name: Festo 10337 Individual subbase NAU-1/2-3B-ISO
Brand: Festo

Individual subbase NAU-1/2-3B-ISO

This Festo industrial component, part number 10337, features a robust die-cast aluminum sub-base with a product weight of 660 g and through-hole mounting. It conforms to ISO 5599-1 and VDMA 24345-B-3 designations, while meeting VDMA24364-B1/B2-L LABS conformity standards. The unit includes G1/2 pneumatic connections for ports 1, 2, 3, 4, and 5, alongside a G1/8 pilot air port 12/14. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 10337
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 10337.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Designation to VDMA: VDMA 24345-B-3
Conforms to standard: ISO 5599-1
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Product weight: 660 g
Type of mounting: With through-hole
Pilot air port 12/14: G1/8
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Pneumatic connection 3: G1/2
Pneumatic connection 4: G1/2
Pneumatic connection 5: G1/2
Material of sub-base: Die-cast aluminum
Official Festo technical specifications: Designation to VDMA VDMA 24345-B-3 Conforms to standard ISO 5599-1 LABS (PWIS) conformity VDMA24364-B1/B2-L Product weight 660 g Type of mounting With through-hole Pilot air port 12/14 G1/8 Pneumatic connection 1 G1/2 Pneumatic connection 2 G1/2 Pneumatic connection 3 G1/2 Pneumatic connection 4 G1/2 Pneumatic connection 5 G1/2 Material of sub-base Die-cast aluminum 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 10337. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
