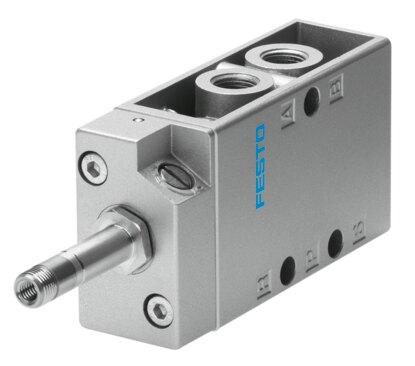

Reference imageConfirm configuration by manufacturer part number.
Festo
10348
Air solenoid valve MFH-5-1/8-S
The Festo 10348 is a 5/2-way monostable industrial component featuring a piloted plate seat design with a 26 mm width and a soft sealing principle. It delivers a normal nominal flow rate of 500 l/min through G1/8 pneumatic working ports across an operating pressure range of 0 bar to 10 bar. This electrical actuation valve operates with a mechanical spring reset, adjustable exhaust air, external pilot air supply, and a detenting manual override requiring a separately ordered solenoid coil. Rated to IP65 and c UL us recognized, it incorporates a 5 mm nominal width and permits mounting in any position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10348
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10348.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 500 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65
- Nominal width
- 5 mm
- Width dimension
- 27 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.12 MPa...0.8 MPa
- Pilot pressure
- 1.2 bar...8 bar
- Switching time off
- 36 ms
- On switching time
- 8 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse on 1 signal
- 3700 µs
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Official Festo technical specifications
- Valve function 5/2-way, monostable Actuation type Electrical Width 26 mm Normal nominal ow rate (normalized to DIN 1343) 500 l/min Pneumatic working port G1/8 Operating voltage Via solenoid coil, to be ordered separately Operating pressure 0 MPa...1 MPa 0 bar...10 bar Structural design Plate seat Reset method Mechanical spring Certication c UL us - recognized (OL) Degree of protection IP65 Nominal width 5 mm Width dimension 27 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Manual override Detenting Type of control Piloted Pilot air supply port External Flow direction Non-reversible Lap Negative overlap Pilot pressure MPa 0.12 MPa...0.8 MPa Pilot pressure 1.2 bar...8 bar Switching time off 36 ms On switching time 8 ms Max. positive test pulse with 0 signal 2200 µs Max. negative test pulse on 1 signal 3700 µs Coil characteristics See solenoid coil, to be ordered separately Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10348. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
