Festo
10352

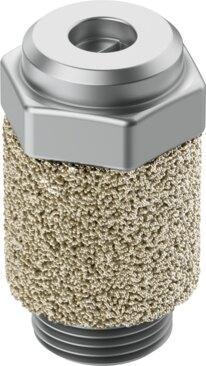

Exhaust air flow control valve GRE-1/4
The Festo 10352 is an industrial component featuring a sound pressure flow control function with an integrated muffler and a G1/4 pneumatic connection. Designed for screw-in mounting in any position, it delivers a standard nominal flow rate of 996 l/min within an operating pressure range of 0 bar to 10 bar. The assembly utilizes a wrought aluminum alloy screwed plug, a brass slotted screw adjusting element, and NBR seals suitable for compressed air media under ambient temperatures from -10 °C to 70 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10352
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10352.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Sound pressure ow control function
- Selection of additional function
- with muffler
- Pneumatic connection 1
- G1/4
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 996 l/min
- Standard ow rate 6->0 bar
- 0 l/min...996 l/min
- Operating pressure
- 0 bar...10 bar
- Ambient temperature
- -10 °C...70 °C
- Mounting position
- Any
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -10 °C...70 °C
- Product weight
- 25 g
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Material of adjusting screw
- Brass
- Official Festo technical specifications
- Valve function Sound pressure ow control function Selection of additional function with muffler Pneumatic connection 1 G1/4 Adjusting element Slotted screw Type of mounting Screw-in Standard nominal ow rate in ow control direction 996 l/min Standard ow rate 6->0 bar 0 l/min...996 l/min Operating pressure 0 bar...10 bar Ambient temperature -10 °C...70 °C Mounting position Any Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Operation with oil lubrication possible (required for further use) LABS (PWIS) conformity VDMA24364-B1/B2-L Temperature of medium -10 °C...70 °C Product weight 25 g Material of screwed plug Wrought aluminum alloy Note on materials RoHS compliant Seals material NBR Material of adjusting screw Brass 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10352. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
