10353

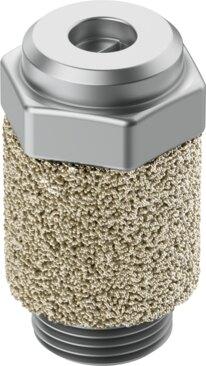

Name: Festo 10353 Exhaust air flow control valve GRE-1/2
Brand: Festo

Exhaust air flow control valve GRE-1/2

The Festo part number 10353 is an industrial component featuring a sound pressure flow control function with an integrated muffler and a G1/2 pneumatic connection. This screw-in component operates with compressed air according to ISO 8573-1:2010 [7:-:-] across an operating pressure range of 0 bar to 10 bar and temperatures from -10 °C to 70 °C. Constructed with a wrought aluminum alloy screwed plug, brass adjusting screw, and NBR seals, it delivers a standard nominal flow rate of 3600 l/min in the flow control direction. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 10353
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 10353.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Sound pressure ow control function
Selection of additional function: with muﬄer
Pneumatic connection 1: G1/2
Adjusting element: Slotted screw
Type of mounting: Screw-in
Standard nominal ow rate in ow control direction: 3600 l/min
Standard ow rate 6->0 bar: 0 l/min...4300 l/min
Operating pressure: 0 bar...10 bar
Ambient temperature: -10 °C...70 °C
Mounting position: Any
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Temperature of medium: -10 °C...70 °C
Product weight: 75 g
Material of screwed plug: Wrought aluminum alloy
Note on materials: RoHS compliant
Seals material: NBR
Material of adjusting screw: Brass
Official Festo technical specifications: Valve function Sound pressure ow control function Selection of additional function with muﬄer Pneumatic connection 1 G1/2 Adjusting element Slotted screw Type of mounting Screw-in Standard nominal ow rate in ow control direction 3600 l/min Standard ow rate 6->0 bar 0 l/min...4300 l/min Operating pressure 0 bar...10 bar Ambient temperature -10 °C...70 °C Mounting position Any Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Information on operating and pilot media Operation with oil lubrication possible (required for further use) LABS (PWIS) conformity VDMA24364-B1/B2-L Temperature of medium -10 °C...70 °C Product weight 75 g Material of screwed plug Wrought aluminum alloy Note on materials RoHS compliant Seals material NBR Material of adjusting screw Brass 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 10353. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
