Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

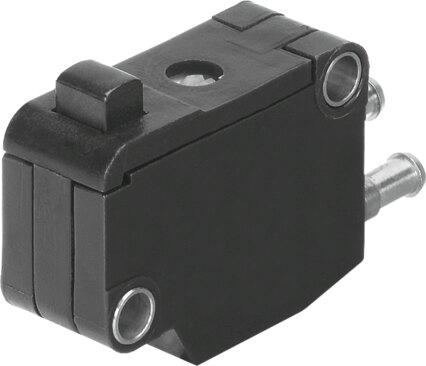

Reference imageConfirm configuration by manufacturer part number.
Festo
10403
Stem actuated micro valve SO-3-PK-3-B
The Festo 10403 is a mechanical 3/2-way monostable open industrial component featuring direct control, a nominal width of 1.8 mm, and a normal nominal flow rate of 60 l/min normalized to DIN 1343. Operating between -0.95 bar and 8 bar, this 7 g brass and POM valve requires a 6 N actuating force and utilizes PK-3 pneumatic connections for ports 1 and 2, along with a mechanical spring reset method and through-hole mounting. It conforms to VDMA24364 Zone III LABS standards and functions within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10403
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10403.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Mechanical
- Normal nominal ow rate (normalized to DIN 1343)
- 60 l/min
- Pneumatic working port
- PK-3
- Operating pressure
- -0.95 bar...8 bar
- Reset method
- Mechanical spring
- Nominal width
- 1.8 mm
- Type of control
- directly
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -10 °C...60 °C
- Actuating force
- 6 N
- Product weight
- 7 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- PK-3
- Pneumatic connection 2
- PK-3
- Housing material
- Brass | POM
- Official Festo technical specifications
- Valve function 3/2-way, monostable, open Actuation type Mechanical Normal nominal ow rate (normalized to DIN 1343) 60 l/min Pneumatic working port PK-3 Operating pressure -0.95 bar...8 bar Reset method Mechanical spring Nominal width 1.8 mm Type of control directly LABS (PWIS) conformity VDMA24364 Zone III Ambient temperature -10 °C...60 °C Actuating force 6 N Product weight 7 g Type of mounting With through-hole Pneumatic connection 1 PK-3 Pneumatic connection 2 PK-3 Housing material Brass POM 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10403. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
