104080

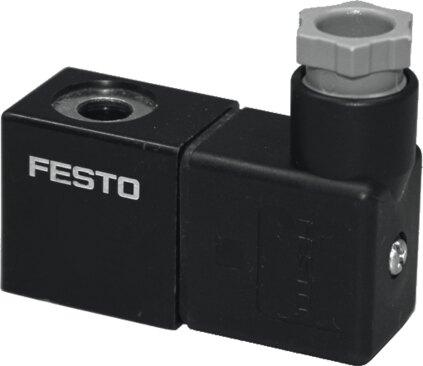

Name: Festo 104080 Solenoid coil BMSFW-120/60
Brand: Festo

Solenoid coil BMSFW-120/60

The Festo 104080 is an industrial component featuring a 120 V AC, 60 Hz coil with a 100% duty cycle, 10 ms minimum pick-up time, and a power factor cos φ of 0.7. Designed with IP65 degree of protection, a 55 g product weight, and durable duroplast, copper, and steel solenoid coil materials, it operates within an ambient temperature range of -5 °C to 40 °C. Installation is accomplished via any mounting position using a knurled nut and a 3-pin electrical connection with plug tags, requiring a maximum socket tightening torque of 0.4 Nm. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 104080
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 104080.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Switching position indication: No
Min. pick-up time: 10 ms
Duty cycle: 100%
Power factor cos {phi}: 0.7
Coil characteristics: 120 V AC: 60 Hz, initial power 10.0 VA, holding power 8 VA
Permissible frequency uctuations: +/- 5%
Permissible voltage uctuations: +/- 10%
CE marking (see declaration of conformity): As per EU low voltage directive
UKCA marking (see declaration of conformity): To UK instructions for electrical equipment
LABS (PWIS) conformity: VDMA24364-C1-L
Degree of protection: IP65
Ambient temperature: -5 °C...40 °C
Max. tightening torque of socket: 0.4 Nm
Product weight: 55 g
Electrical connection: 3-pin | Plug ags with connection diagram as per Festo standard for MSSD-F
Type of mounting: With knurled nut
Note on materials: RoHS compliant
Solenoid coil material: Duroplast | Copper | Steel
Material of winding: Copper
Official Festo technical specifications: Mounting position Any Switching position indication No Min. pick-up time 10 ms Duty cycle 100% Power factor cos {phi} 0.7 Coil characteristics 120 V AC: 60 Hz, initial power 10.0 VA, holding power 8 VA Permissible frequency uctuations +/- 5% Permissible voltage uctuations +/- 10% CE marking (see declaration of conformity) As per EU low voltage directive UKCA marking (see declaration of conformity) To UK instructions for electrical equipment LABS (PWIS) conformity VDMA24364-C1-L Degree of protection IP65 Ambient temperature -5 °C...40 °C Max. tightening torque of socket 0.4 Nm Product weight 55 g Electrical connection 3-pin Plug ags with connection diagram as per Festo standard for MSSD-F Type of mounting With knurled nut Note on materials RoHS compliant Solenoid coil material Duroplast Copper Steel Material of winding Copper 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 104080. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
