Name: Festo 10409 Pneumatic valve JDH-5-1/4
Brand: Festo

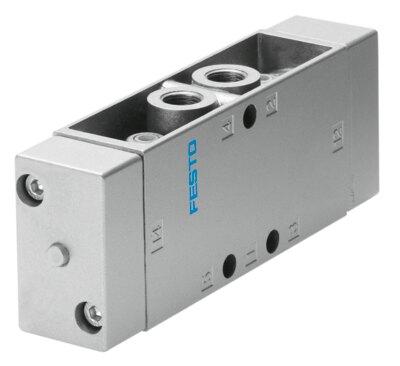

Pneumatic valve JDH-5-1/4

The Festo 10409 is a direct-controlled pneumatic industrial component featuring a 5/2-way dominant, bistable valve function with a soft sealing principle and negative overlap lap. This plate seat design offers a normal nominal flow rate of 1100 l/min through G1/4 pneumatic working ports, operating within a pressure range of 0 bar to 8 bar and an external pilot pressure range of 2.3 bar to 10 bar. Built with a 30.5 mm width, a 7 mm nominal width, and an IP65 degree of protection, the unit accommodates any mounting position, adjustable exhaust air function, and a maximum switching frequency of 12 Hz. Submit the exact part number, quantity, and application requirements to request a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 10409
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 10409.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, dominant, bistable
Actuation type: Pneumatic
Width: 30.5 mm
Normal nominal ow rate (normalized to DIN 1343): 1100 l/min
Pneumatic working port: G1/4
Operating pressure: 0 MPa...0.8 MPa | 0 bar...8 bar
Structural design: Plate seat
Degree of protection: IP65
Nominal width: 7 mm
Width dimension: 32 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Type of control: directly
Pilot air supply port: External
Flow direction: Non-reversible
Lap: Negative overlap
Pilot pressure MPa: 0.23 MPa...1 MPa
Pilot pressure: 2.3 bar...10 bar
Max. switching frequency: 12 Hz
Changeover time: 12 ms
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Product weight: 330 g
Type of mounting: Alternatively: | On terminal strip
