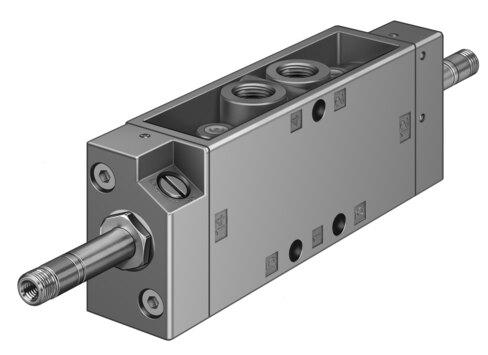

Name: Festo 10411 Air solenoid valve JMFDH-5-1/4
Brand: Festo

Air solenoid valve JMFDH-5-1/4

The Festo part number 10411 is a 5/2-way dominant, bistable industrial component featuring a piloted, plate seat structural design with soft sealing principles and a negative overlap lap. It delivers a normal nominal flow rate of 1100 l/min through G1/4 pneumatic working ports, operating within a pressure range of 0.25 MPa to 0.8 MPa (2.5 bar to 8 bar) and supporting a maximum switching frequency of 16 Hz. Equipped with an IP65 degree of protection, c UL us recognition, a detenting manual override, and adjustable exhaust air function, this 30.5 mm wide unit accommodates electrical actuation via a separately ordered solenoid coil in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 10411
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 10411.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, dominant, bistable
Actuation type: Electrical
Width: 30.5 mm
Normal nominal ow rate (normalized to DIN 1343): 1100 l/min
Pneumatic working port: G1/4
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: 0.25 MPa...0.8 MPa | 2.5 bar...8 bar
Structural design: Plate seat
Certication: c UL us - recognized (OL)
Degree of protection: IP65
Nominal width: 7 mm
Width dimension: 32 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting
Type of control: Piloted
Flow direction: Non-reversible
Lap: Negative overlap
Max. switching frequency: 16 Hz
Changeover time: 16 ms
Max. positive test pulse with 0 signal: 2200 µs
Max. negative test pulse on 1 signal: 3700 µs
Coil characteristics: See solenoid coil, to be ordered separately
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Temperature of medium: -10 °C...60 °C
Ambient temperature: -5 °C...40 °C
Official Festo technical specifications: Valve function 5/2-way, dominant, bistable Actuation type Electrical Width 30.5 mm Normal nominal ow rate (normalized to DIN 1343) 1100 l/min Pneumatic working port G1/4 Operating voltage Via solenoid coil, to be ordered separately Operating pressure 0.25 MPa...0.8 MPa 2.5 bar...8 bar Structural design Plate seat Certication c UL us - recognized (OL) Degree of protection IP65 Nominal width 7 mm Width dimension 32 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Manual override Detenting Type of control Piloted Flow direction Non-reversible Lap Negative overlap Max. switching frequency 16 Hz Changeover time 16 ms Max. positive test pulse with 0 signal 2200 µs Max. negative test pulse on 1 signal 3700 µs Coil characteristics See solenoid coil, to be ordered separately Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B1/B2-L Storage temperature -20 °C...60 °C Temperature of medium -10 °C...60 °C Ambient temperature -5 °C...40 °C 6/5/26 –
