Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

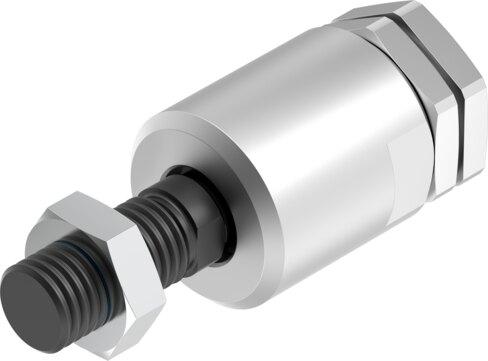

Reference imageConfirm configuration by manufacturer part number.
Festo
10485
Self-aligning rod coupler FK-M27X2
The Festo industrial component, part number 10485, features an M27x2 size with a product weight of 2129 g and a RoHS compliant material construction utilizing galvanized steel, case-hardened steel ball pins and spherical washers, and galvanized steel housing and nuts. It operates within an ambient temperature range of -40 °C to 150 °C and meets corrosion resistance class CRC 2 for moderate corrosion stress alongside VDMA24364-B2-L LABS conformity. For Li-ion battery production suitability, metals with more than 1% by mass of copper, circuit boards, lines, electrical push-in connectors, and coils are excluded. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10485
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10485.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M27x2
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 1% by mass of copper are excluded from use. | Circuit boards, lines, electrical push-in connectors and coils are excluded
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 2129 g
- Note on materials
- RoHS compliant
- Bushing material
- Galvanized steel
- Housing material
- Steel, galvanized
- Ball pin material
- Case-hardened steel
- Spherical washer material
- Case-hardened steel
- Nut material
- Steel, galvanized
- Official Festo technical specifications
- Size M27x2 Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Suitability for the production of Li-ion batteries Metals with more than 1% by mass of copper are excluded from use. Circuit boards, lines, electrical push-in connectors and coils are excluded Ambient temperature -40 °C...150 °C Product weight 2129 g Note on materials RoHS compliant Bushing material Galvanized steel Housing material Steel, galvanized Ball pin material Case-hardened steel Spherical washer material Case-hardened steel Nut material Steel, galvanized 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10485. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
