Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
1048645

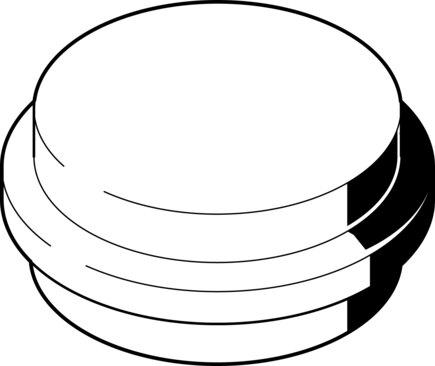

Suction cup insert OASI-10
The Festo industrial component, part number 1048645, is an insertable part featuring an operating pressure range of 0 bar to 0.95 bar and compatibility with atmospheric air based on ISO 8573-1:2010 [7:-:-]. This RoHS-compliant unit weighs 0.1 g, has an ambient temperature range of 5 °C to 50 °C, and conforms to VDMA24364-A1-L for LABS (PWIS). It accommodates any mounting position, utilizes a protective grounding suction-cup insert material, and requires supplementary material information for food industry applications. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1048645
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1048645.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Operating pressure
- 0 bar...0.95 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-A1-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- 5 °C...50 °C
- Product weight
- 0.1 g
- Type of mounting
- Insertable
- Note on materials
- RoHS compliant
- Suction-cup insert material
- Protective grounding
- Ejector pulse suitability
- 0 bar
- Mounting position
- Any
- Official Festo technical specifications
- Operating pressure 0 bar...0.95 bar Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-] LABS (PWIS) conformity VDMA24364-A1-L For use in the food industry See supplementary material information Ambient temperature 5 °C...50 °C Product weight 0.1 g Type of mounting Insertable Note on materials RoHS compliant Suction-cup insert material Protective grounding Ejector pulse suitability 0 bar Mounting position Any 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1048645. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
