1066354

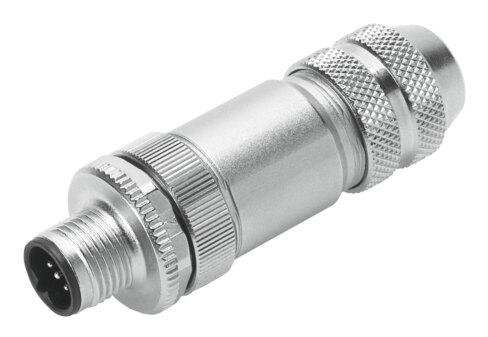

Name: Festo 1066354 Plug NECU-M-S-B12G5-C2-PB
Brand: Festo

Plug NECU-M-S-B12G5-C2-PB

The Festo 1066354 is an industrial component featuring a straight, shieldable M12x1 5-pin B-coded plug on connection 1 and a shieldable screw terminal on connection 2, built in accordance with EN 61076-2-101 and EN 61984 norms. Weighing 46.1 g, this part operates within a 0 V to 60 V AC/DC range, carries a 4 A current rating at 40° C, and offers IP67 protection within an ambient temperature range of -25 °C to 85 °C. Constructed with a nickel-plated die-cast zinc housing, it supports cable diameters from 6 mm to 8 mm and connection cross-sections from 0.14 mm² to 0.75 mm². Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1066354
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1066354.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Based on norm: EN 61076-2-101 | EN 61984
Product weight: 46.1 g
Electrical connection 1: Straight plug, M12x1, 5-pin, B-coded, shieldable
Plug coding: B
Electrical connection 2: Screw terminal, can be shielded
DC operating voltage range: 0 V...60 V
Operating voltage range AC: 0 V...60 V
Current rating at 40° C: 4 A
Surge resistance: 1.5 kV
Transmission characteristics: DIN EN 50173/CAT 5
Approved cable diameter: 6 mm...8 mm
Connection cross section: 0.14 mm²...0.75 mm²
Degree of protection: IP67
Ambient temperature: -25 °C...85 °C
CE marking (see declaration of conformity): As per EU low voltage directive
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Contamination level: 3
Corrosion resistance class (CRC): 1 - Low corrosion stress
Housing material: Die-cast zinc | Nickel-plated
Material of pin contacts: Brass | Gold-plated
Official Festo technical specifications: Based on norm EN 61076-2-101 EN 61984 Product weight 46.1 g Electrical connection 1 Straight plug, M12x1, 5-pin, B-coded, shieldable Plug coding B Electrical connection 2 Screw terminal, can be shielded DC operating voltage range 0 V...60 V Operating voltage range AC 0 V...60 V Current rating at 40° C 4 A Surge resistance 1.5 kV Transmission characteristics DIN EN 50173/CAT 5 Approved cable diameter 6 mm...8 mm Connection cross section 0.14 mm²...0.75 mm² Degree of protection IP67 Ambient temperature -25 °C...85 °C CE marking (see declaration of conformity) As per EU low voltage directive LABS (PWIS) conformity VDMA24364-B2-L Note on materials RoHS compliant Contamination level 3 Corrosion resistance class (CRC) 1 - Low corrosion stress Housing material Die-cast zinc Nickel-plated Material of pin contacts Brass Gold-plated 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1066354. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
