Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
1072128

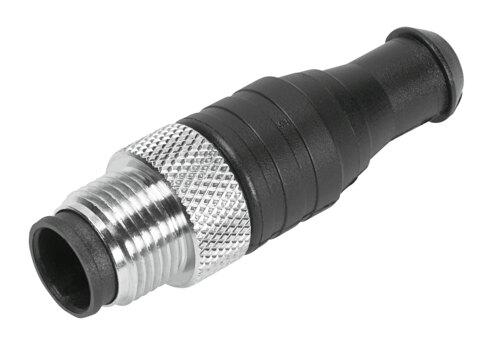

Terminating resistor CACR-S-B12G5-220-PB
Engineered by Festo, this industrial component operates within a DC voltage range of 0 V to 5 V and features a 4-pin M12x1 straight plug with B coding. The unit weighs 11.6 g, utilizing a TPE-U(PU) housing and gold-plated brass pin contacts that deliver an IP67 degree of protection and contamination level 3 performance across ambient temperatures from -25 °C to 80 °C. Complying with RoHS standards and VDMA24364-B2-L LABS conformity, this RoHS-compliant part addresses specific installation parameters. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1072128
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1072128.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- DC operating voltage range
- 0 V...5 V
- Contamination level
- 3
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP67
- Ambient temperature
- -25 °C...80 °C
- Product weight
- 11.6 g
- Electrical connection
- 4-pin | M12x1 | Straight plug
- Plug coding
- B
- Note on materials
- RoHS compliant
- Housing material
- TPE-U(PU)
- Material of pin contacts
- Brass | Gold-plated
- Official Festo technical specifications
- DC operating voltage range 0 V...5 V Contamination level 3 LABS (PWIS) conformity VDMA24364-B2-L Degree of protection IP67 Ambient temperature -25 °C...80 °C Product weight 11.6 g Electrical connection 4-pin M12x1 Straight plug Plug coding B Note on materials RoHS compliant Housing material TPE-U(PU) Material of pin contacts Brass Gold-plated 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1072128. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
