Festo
10746

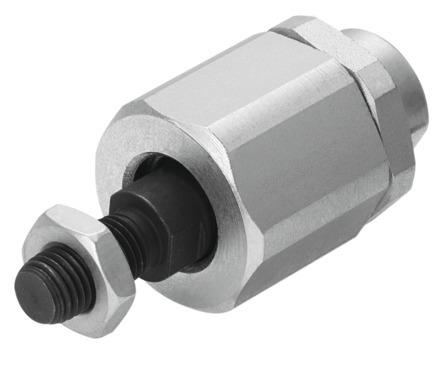

Self-aligning rod coupler FK-M36X2
This Festo industrial component, part number 10746, features an M36x2 size and a product weight of 6079 g, constructed with a galvanized steel housing, galvanized steel bushing, case-hardened steel ball pin, case-hardened steel spherical washer, and a galvanized steel nut. The unit operates within an ambient temperature range of -40 °C to 150 °C and achieves a corrosion resistance class of CRC 2 for moderate corrosion stress with VDMA24364-B2-L LABS conformity and RoHS material compliance. Its construction excludes metals with more than 1% by mass of copper, circuit boards, lines, electrical push-in connectors, and coils to maintain suitability for the production of Li-ion batteries. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10746
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10746.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M36x2
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Metals with more than 1% by mass of copper are excluded from use. | Circuit boards, lines, electrical push-in connectors and coils are excluded
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 6079 g
- Note on materials
- RoHS compliant
- Bushing material
- Galvanized steel
- Housing material
- Steel, galvanized
- Ball pin material
- Case-hardened steel
- Spherical washer material
- Case-hardened steel
- Nut material
- Steel, galvanized
- Official Festo technical specifications
- Size M36x2 Corrosion resistance class (CRC) 2 - Moderate corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Suitability for the production of Li-ion batteries Metals with more than 1% by mass of copper are excluded from use. Circuit boards, lines, electrical push-in connectors and coils are excluded Ambient temperature -40 °C...150 °C Product weight 6079 g Note on materials RoHS compliant Bushing material Galvanized steel Housing material Steel, galvanized Ball pin material Case-hardened steel Spherical washer material Case-hardened steel Nut material Steel, galvanized 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10746. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
