Festo
10747

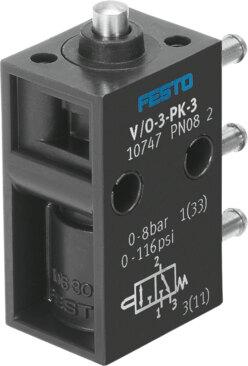

Stem actuated valve V/O-3-PK-3
The Festo 10747 is a directly controlled mechanical industrial component featuring a 3/2 open/closed monostable piston seat valve design with a nominal width of 2.5 mm and PK-3 pneumatic working ports. Operating within a pressure range of 0 bar to 8 bar and an ambient temperature range of -10 °C to 60 °C, this 20 g unit delivers a normal nominal flow rate of 80 l/min using compressed air as per ISO 8573-1:2010 [-:-:-]. It requires an actuating force of 17 N in the closed initial position and 24 N in the open initial position, utilizes NBR seals, and mounts via a through-hole with VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10747
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10747.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2, open/closed, monostable
- Actuation type
- Mechanical
- Normal nominal ow rate (normalized to DIN 1343)
- 80 l/min
- Pneumatic working port
- PK-3
- Operating pressure
- 0 bar...8 bar
- Structural design
- Piston seat
- Nominal width
- 2.5 mm
- Type of control
- directly
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-]
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Actuating force
- 17 N
- Actuation force in initial position closed
- 17 N
- Actuation force in initial position open
- 24 N
- Product weight
- 20 g
- Type of mounting
- With through-hole
- Pneumatic connection 1
- PK-3
- Pneumatic connection 2
- PK-3
- Pneumatic connection 3
- PK-3
- Seals material
- NBR
- Housing material
- POM
- Official Festo technical specifications
- Valve function 3/2, open/closed, monostable Actuation type Mechanical Normal nominal ow rate (normalized to DIN 1343) 80 l/min Pneumatic working port PK-3 Operating pressure 0 bar...8 bar Structural design Piston seat Nominal width 2.5 mm Type of control directly Operating medium Compressed air as per ISO 8573-1:2010 [-:-:-] LABS (PWIS) conformity VDMA24364-B1/B2-L Ambient temperature -10 °C...60 °C Actuating force 17 N Actuation force in initial position closed 17 N Actuation force in initial position open 24 N Product weight 20 g Type of mounting With through-hole Pneumatic connection 1 PK-3 Pneumatic connection 2 PK-3 Pneumatic connection 3 PK-3 Seals material NBR Housing material POM 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10747. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
