Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

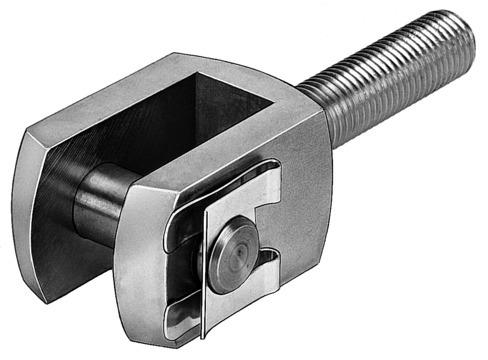

Reference imageConfirm configuration by manufacturer part number.
Festo
10770
Rod clevis SGA-M27X2
The Festo 10770 is an industrial component featuring an external thread size of M27x2, a radial deviation of plus or minus 5 mm, and an angle compensator of plus or minus 120 degrees. Constructed with a galvanized steel rod eye and bolt alongside a galvanized spring steel fuse, this part operates within an ambient temperature range of -40 °C to 150 °C in any mounting position. It holds a corrosion resistance class of CRC 1 for low corrosion stress, VDMA24364-B2-L LABS conformity, RoHS compliance, and a product weight of 2189 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10770
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10770.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M27x2
- Radial deviation +/-
- 5 mm
- Angle compensator +/-
- 120 deg
- Mounting position
- Any
- Threaded connection
- External thread M27x2
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 2189 g
- Note on materials
- RoHS compliant
- Bolt material
- Steel, galvanized
- Material of rod eye
- Steel | Galvanized
- Fuse material
- Spring steel, galvanized
- Official Festo technical specifications
- Size M27x2 Radial deviation +/- 5 mm Angle compensator +/- 120 deg Mounting position Any Threaded connection External thread M27x2 Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -40 °C...150 °C Product weight 2189 g Note on materials RoHS compliant Bolt material Steel, galvanized Material of rod eye Steel Galvanized Fuse material Spring steel, galvanized 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10770. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
