Name: Festo 10772 Pneumatic valve J-3-PK-3
Brand: Festo

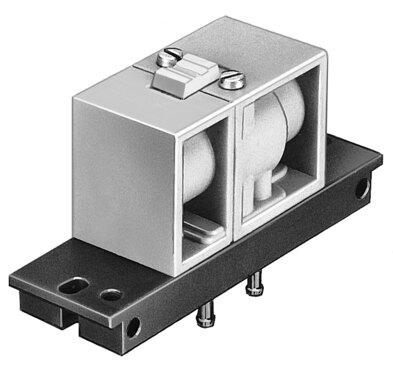

Pneumatic valve J-3-PK-3

The Festo part number 10772 is a 3/2-way bistable piston gate valve featuring a 2.5 mm nominal width and a normalized nominal flow rate of 100 l/min according to DIN 1343. This component operates within a pressure range of -0.9 bar to 8 bar, achieves a 7 ms changeover time, and supports compressed air operating medium per ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -10 °C to 60 °C. Constructed with NBR seals and a sub-base material of brass and PPS-reinforced components, the 75 g unit includes PK-3 pneumatic working, auxiliary pilot, and connection ports configured for mounting via sub-base, mounting frame, or through-hole. Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention with VDMA24364 Zone III LABS conformity, this model requires users to observe the provided certificate information. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 10772
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 10772.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, bistable
Normal nominal ow rate (normalized to DIN 1343): 100 l/min
Pneumatic working port: PK-3
Operating pressure: -0.9 bar...8 bar
Structural design: Piston gate valve
Nominal width: 2.5 mm
Changeover time: 7 ms
Explosion prevention and protection: Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364 Zone III
Ambient temperature: -10 °C...60 °C
Product weight: 75 g
Type of mounting: Alternatively: | On sub-base | On mounting frame | With through-hole
Auxiliary pilot air port 12: PK-3
Auxiliary pilot air port 14: PK-3
Pneumatic connection 1: PK-3
Pneumatic connection 4: PK-3
Pneumatic connection 5: PK-3
Material of sub-base: Brass | PPS-reinforced
Seals material: NBR
Housing material: Polymer | Die-cast zinc
Official Festo technical specifications: Valve function 3/2-way, bistable Normal nominal ow rate (normalized to DIN 1343) 100 l/min Pneumatic working port PK-3 Operating pressure -0.9 bar...8 bar Structural design Piston gate valve Nominal width 2.5 mm Changeover time 7 ms Explosion prevention and protection Observe the information on the certicate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] LABS (PWIS) conformity VDMA24364 Zone III Ambient temperature -10 °C...60 °C Product weight 75 g Type of mounting Alternatively: On sub-base On mounting frame With through-hole Auxiliary pilot air port 12 PK-3 Auxiliary pilot air port 14 PK-3 Pneumatic connection 1 PK-3 Pneumatic connection 4 PK-3 Pneumatic connection 5 PK-3 Material of sub-base Brass PPS-reinforced Seals material NBR Housing material Polymer Die-cast zinc 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 10772. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
