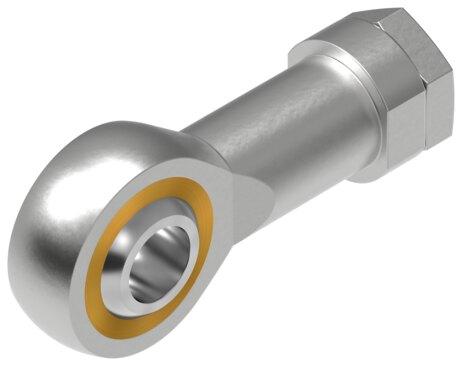

Reference imageConfirm configuration by manufacturer part number.
Festo
10776
Rod eye SGS-M42X2
The Festo part number 10776 is an industrial component featuring an M42x2 size based on the ISO 12240-4 norm, a galvanized steel housing with a brass outer ring, a steel inner raceway, and a galvanized steel nut. This RoHS compliant assembly supports an ambient temperature range of -40 °C to 150 °C, a product weight of 3149 g, a CRC 1 low corrosion stress rating, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10776
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10776.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M42x2
- Based on norm
- ISO 12240-4
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 3149 g
- Note on materials
- RoHS compliant
- Material of outer ring
- Brass
- Housing material
- Steel, galvanized
- Inner raceway material
- Steel
- Nut material
- Steel, galvanized
- Official Festo technical specifications
- Size M42x2 Based on norm ISO 12240-4 Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -40 °C...150 °C Product weight 3149 g Note on materials RoHS compliant Material of outer ring Brass Housing material Steel, galvanized Inner raceway material Steel Nut material Steel, galvanized 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10776. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
