Festo
10777

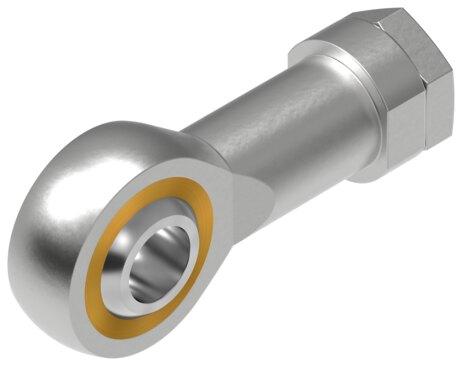

Rod eye SGS-M48X2
The Festo part number 10777 is an industrial component featuring an M48x2 size based on the ISO 12240-4 norm, weighing 5527 g with RoHS compliance and VDMA24364-B2-L LABS conformity. This component is constructed with a brass outer ring, a steel inner raceway, and a galvanized steel housing and nut, operating within an ambient temperature range of -40 °C to 150 °C under a corrosion resistance class (CRC) of 1 for low corrosion stress. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10777
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10777.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M48x2
- Based on norm
- ISO 12240-4
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...150 °C
- Product weight
- 5527 g
- Note on materials
- RoHS compliant
- Material of outer ring
- Brass
- Housing material
- Steel, galvanized
- Inner raceway material
- Steel
- Nut material
- Steel, galvanized
- Official Festo technical specifications
- Size M48x2 Based on norm ISO 12240-4 Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Ambient temperature -40 °C...150 °C Product weight 5527 g Note on materials RoHS compliant Material of outer ring Brass Housing material Steel, galvanized Inner raceway material Steel Nut material Steel, galvanized 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10777. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
