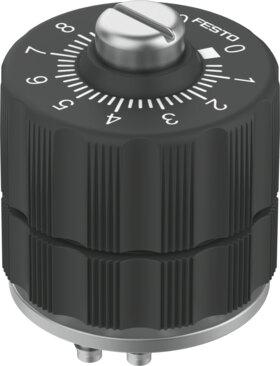

Name: Festo 10802 Precision one-way flow control valve GRP-70-PK-3
Brand: Festo

Precision one-way flow control valve GRP-70-PK-3

The Festo 10802 is an industrial component featuring a one-way flow control function with PK-3 pneumatic connections on both ports and manual actuation via a rotary knob with a scale designed for front panel mounting. Constructed with a PA-reinforced housing and conforming to VDMA24364 Zone III LABS conformity, this device operates with compressed air as per ISO 8573-1:2010 [5:4:3] or inert gases within an ambient temperature range of -10 °C to 50 °C and an operating pressure of 0 bar to 8 bar, while precluding operation with oil lubrication. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 10802
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 10802.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: One-way ow control function
Pneumatic connection 1: PK-3
Pneumatic connection 2: PK-3
Actuation type: Manual
Adjusting element: Rotary knob with scale
Type of mounting: Front panel mounting
Standard nominal ow rate in ow control direction: 40.7 l/min
Standard nominal ow rate in non-return direction: 88 l/min
Operating pressure: 0 bar...8 bar
Ambient temperature: -10 °C...50 °C
Housing material: PA-reinforced
Mounting position: Any
Operating pressure from 2 to 1: 0 bar...8 bar
Standard nominal ow rate in ow control direction from 1bar to 0 bar: 19 l/min
Standard nominal ow rate in non-return direction from 1 bar to 0 bar: 20 l/min...60 l/min
Standard ow rate in ow control direction 6 -> 0 bar: 60 l/min
Standard ow rate in non-return direction at 6 -> 0 bar: 127 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [5:4:3] | Inert gases
Information on operating and pilot media: Operation with oil lubrication not possible
LABS (PWIS) conformity: VDMA24364 Zone III
Temperature of medium: -10 °C...50 °C
Product weight: 48 g
Note on materials: RoHS compliant
Seals material: NBR | PVC
Retainer bracket material: Wrought aluminum alloy
Official Festo technical specifications: Valve function One-way ow control function Pneumatic connection 1 PK-3 Pneumatic connection 2 PK-3 Actuation type Manual Adjusting element Rotary knob with scale Type of mounting Front panel mounting Standard nominal ow rate in ow control direction 40.7 l/min Standard nominal ow rate in non-return direction 88 l/min Operating pressure 0 bar...8 bar Ambient temperature -10 °C...50 °C Housing material PA-reinforced Mounting position Any Operating pressure from 2 to 1 0 bar...8 bar Standard nominal ow rate in ow control direction from 1bar to 0 bar 19 l/min Standard nominal ow rate in non-return direction from 1 bar to 0 bar 20 l/min...60 l/min Standard ow rate in ow control direction 6 -> 0 bar 60 l/min Standard ow rate in non-return direction at 6 -> 0 bar 127 l/min Operating medium Compressed air as per ISO 8573-1:2010 [5:4:3] Inert gases Information on operating and pilot media Operation with oil lubrication not possible LABS (PWIS) conformity VDMA24364 Zone III Temperature of medium -10 °C...50 °C Product weight 48 g Note on materials RoHS compliant Seals material NBR PVC Retainer bracket material Wrought aluminum alloy 6/5/26 –
