10803

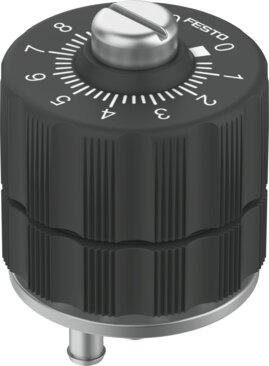

Name: Festo 10803 Precision throttle valve GRPO-70-PK-3
Brand: Festo

Precision throttle valve GRPO-70-PK-3

The Festo part number 10803 is an industrial component featuring a manual flow control valve function with PK-3 pneumatic connections on both ports. Housed in reinforced PA and weighing 48 g, this device incorporates a rotary knob with a scale for front panel mounting in any position. It operates with compressed air per ISO 8573-1:2010 [5:4:3] or inert gases within an operating pressure range of 0 bar to 8 bar and ambient temperatures from -10 °C to 50 °C, excluding oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 10803
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 10803.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Flow control function
Pneumatic connection 1: PK-3
Pneumatic connection 2: PK-3
Actuation type: Manual
Adjusting element: Rotary knob with scale
Type of mounting: Front panel mounting
Standard nominal ow rate in ow control direction: 40.7 l/min
Operating pressure: 0 bar...8 bar
Ambient temperature: -10 °C...50 °C
Housing material: PA-reinforced
Mounting position: Any
Operating pressure from 2 to 1: 0 bar...0.5 bar
Standard nominal ow rate in ow control direction from 1bar to 0 bar: 19 l/min
Standard ow rate in ow control direction 6 -> 0 bar: 60 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [5:4:3] | Inert gases
Information on operating and pilot media: Operation with oil lubrication not possible
LABS (PWIS) conformity: VDMA24364 Zone III
Temperature of medium: -10 °C...50 °C
Product weight: 48 g
Note on materials: RoHS compliant
Seals material: NBR | PVC
Retainer bracket material: Wrought aluminum alloy
PK connections material: Wrought aluminum alloy | Brass
Official Festo technical specifications: Valve function Flow control function Pneumatic connection 1 PK-3 Pneumatic connection 2 PK-3 Actuation type Manual Adjusting element Rotary knob with scale Type of mounting Front panel mounting Standard nominal ow rate in ow control direction 40.7 l/min Operating pressure 0 bar...8 bar Ambient temperature -10 °C...50 °C Housing material PA-reinforced Mounting position Any Operating pressure from 2 to 1 0 bar...0.5 bar Standard nominal ow rate in ow control direction from 1bar to 0 bar 19 l/min Standard ow rate in ow control direction 6 -> 0 bar 60 l/min Operating medium Compressed air as per ISO 8573-1:2010 [5:4:3] Inert gases Information on operating and pilot media Operation with oil lubrication not possible LABS (PWIS) conformity VDMA24364 Zone III Temperature of medium -10 °C...50 °C Product weight 48 g Note on materials RoHS compliant Seals material NBR PVC Retainer bracket material Wrought aluminum alloy PK connections material Wrought aluminum alloy Brass 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 10803. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
