1081659

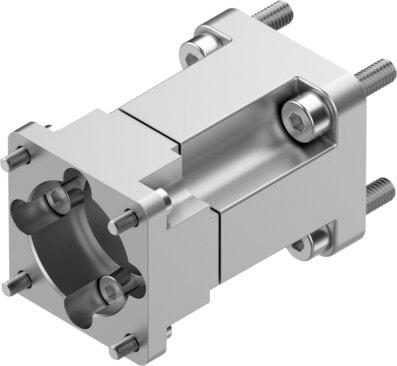

Name: Festo 1081659 Axial kit EAMM-A-D19-28A
Brand: Festo

Axial kit EAMM-A-D19-28A

This Festo industrial component features a nominal length of 46.2 mm, a transferable torque of 1.1 Nm, and a maximum rotational speed of 10000 rpm with a mass moment of inertia of 0.28 kgmm². Constructed with actuator interface code D19 and motor input interface code 28A, the 80 g unit offers an IP40 degree of protection, VDMA24364 Zone III LABS conformity, and RoHS compliant materials for operation within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1081659
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1081659.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal length: 46.2 mm
Mounting position: Any
Max. rotational speed: 10000 rpm
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -25 °C...60 °C
Relative air humidity: 0 - 95%
Degree of protection: IP40
Ambient temperature: -10 °C...60 °C
Mass moment of inertia: 0.28 kgmm²
Transferable torque: 1.1 Nm
Product weight: 80 g
Interface code, actuator: D19
Interface code, motor in: 28A
Note on materials: RoHS compliant
Official Festo technical specifications: Nominal length 46.2 mm Mounting position Any Max. rotational speed 10000 rpm LABS (PWIS) conformity VDMA24364 Zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP40 Ambient temperature -10 °C...60 °C Mass moment of inertia 0.28 kgmm² Transferable torque 1.1 Nm Product weight 80 g Interface code, actuator D19 Interface code, motor in 28A Note on materials RoHS compliant 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1081659. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
