10834

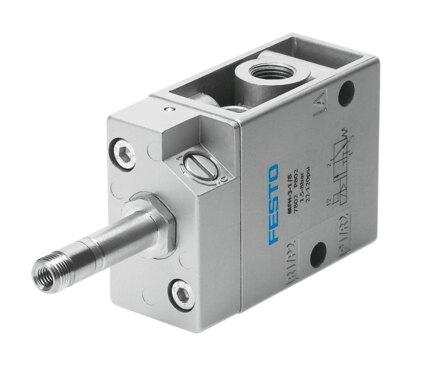

Name: Festo 10834 Air solenoid valve MFH-3-1/8-NPT
Brand: Festo

Air solenoid valve MFH-3-1/8-NPT

The Festo 10834 is a 3/2-way closed monostable industrial component featuring a piloted, plate seat structural design with soft sealing and a negative overlap lap. It delivers a normal nominal flow rate of 500 l/min through a 1/8 NPT pneumatic working port, operating at pressures from 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar) with a nominal width of 5 mm and an adjustable exhaust air function. This c UL us recognized (OL) unit offers IP65 protection, mechanical spring reset, a 29 ms switching time off, and electrical actuation via a separately ordered solenoid coil across any mounting position. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 10834
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 10834.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 3/2-way, closed, monostable
Actuation type: Electrical
Width: 26 mm
Normal nominal ow rate (normalized to DIN 1343): 500 l/min
Pneumatic working port: 1/8 NPT
Operating voltage: Via solenoid coil, to be ordered separately
Operating pressure: 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
Structural design: Plate seat
Reset method: Mechanical spring
Certication: c UL us - recognized (OL)
Degree of protection: IP65
Nominal width: 5 mm
Width dimension: 27 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Type of control: Piloted
Flow direction: Non-reversible
Lap: Negative overlap
Switching time oﬀ: 29 ms
On switching time: 9 ms
Max. positive test pulse with 0 signal: 2200 µs
Max. negative test pulse on 1 signal: 3700 µs
Coil characteristics: See solenoid coil, to be ordered separately
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -20 °C...60 °C
Temperature of medium: -10 °C...60 °C
Ambient temperature: -5 °C...40 °C
Official Festo technical specifications: Valve function 3/2-way, closed, monostable Actuation type Electrical Width 26 mm Normal nominal ow rate (normalized to DIN 1343) 500 l/min Pneumatic working port 1/8 NPT Operating voltage Via solenoid coil, to be ordered separately Operating pressure 0.15 MPa...0.8 MPa 1.5 bar...8 bar Structural design Plate seat Reset method Mechanical spring Certication c UL us - recognized (OL) Degree of protection IP65 Nominal width 5 mm Width dimension 27 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Type of control Piloted Flow direction Non-reversible Lap Negative overlap Switching time oﬀ 29 ms On switching time 9 ms Max. positive test pulse with 0 signal 2200 µs Max. negative test pulse on 1 signal 3700 µs Coil characteristics See solenoid coil, to be ordered separately Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -20 °C...60 °C Temperature of medium -10 °C...60 °C Ambient temperature -5 °C...40 °C 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 10834. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
