Festo
10837

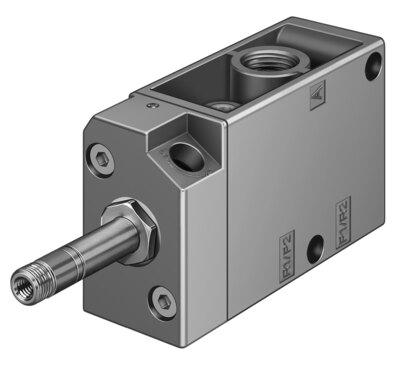

Air solenoid valve MOFH-3-1/4-NPT
The Festo part number 10837 is an electrical 3/2-way monostable open industrial component featuring a plate seat structural design and a nominal width of 7 mm. This piloted valve utilizes a soft sealing principle with a negative overlap, delivering a normal nominal flow rate of 800 l/min through 1/4 NPT pneumatic working ports and an adjustable exhaust air function. Operating within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar), the unit incorporates a mechanical spring reset method, detenting manual override, and IP65 degree of protection with c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10837
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10837.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, monostable, open
- Actuation type
- Electrical
- Width
- 30.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- 1/4 NPT
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65
- Nominal width
- 7 mm
- Width dimension
- 32 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Switching time off
- 41 ms
- On switching time
- 14 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse on 1 signal
- 3700 µs
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Official Festo technical specifications
- Valve function 3/2-way, monostable, open Actuation type Electrical Width 30.5 mm Normal nominal ow rate (normalized to DIN 1343) 800 l/min Pneumatic working port 1/4 NPT Operating voltage Via solenoid coil, to be ordered separately Operating pressure 0.15 MPa...0.8 MPa 1.5 bar...8 bar Structural design Plate seat Reset method Mechanical spring Certication c UL us - recognized (OL) Degree of protection IP65 Nominal width 7 mm Width dimension 32 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Manual override Detenting Type of control Piloted Flow direction Non-reversible Lap Negative overlap Switching time off 41 ms On switching time 14 ms Max. positive test pulse with 0 signal 2200 µs Max. negative test pulse on 1 signal 3700 µs Coil characteristics See solenoid coil, to be ordered separately Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -20 °C...60 °C Temperature of medium -10 °C...60 °C 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10837. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
