Festo
10844

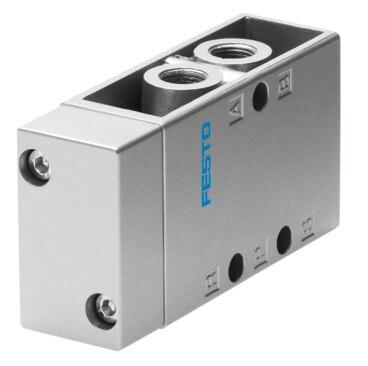

Pneumatic valve VL-5-1/4-NPT
The Festo 10844 is a 5/2-way monostable pneumatic industrial component featuring a plate seat structural design and a width dimension of 32 mm with a 30.5 mm body width. This directly controlled valve operates within an operating pressure range of 0 bar to 8 bar and delivers a normal nominal flow rate of 800 l/min through 1/4 NPT pneumatic working ports. Built with soft sealing principles, an adjustable exhaust air function, and an IP65 degree of protection, it utilizes an external pilot air supply port requiring a pilot pressure of 1.2 bar to 10 bar alongside a mechanical spring reset method. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10844
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10844.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Pneumatic
- Width
- 30.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- 1/4 NPT
- Operating pressure
- 0 MPa...0.8 MPa | 0 bar...8 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Nominal width
- 7 mm
- Width dimension
- 32 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Type of control
- directly
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.12 MPa...1 MPa
- Pilot pressure
- 1.2 bar...10 bar
- Switching time off
- 11 ms
- On switching time
- 7 ms
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 220 g
- Official Festo technical specifications
- Valve function 5/2-way, monostable Actuation type Pneumatic Width 30.5 mm Normal nominal ow rate (normalized to DIN 1343) 800 l/min Pneumatic working port 1/4 NPT Operating pressure 0 MPa...0.8 MPa 0 bar...8 bar Structural design Plate seat Reset method Mechanical spring Degree of protection IP65 Nominal width 7 mm Width dimension 32 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Type of control directly Pilot air supply port External Flow direction Non-reversible Lap Negative overlap Pilot pressure MPa 0.12 MPa...1 MPa Pilot pressure 1.2 bar...10 bar Switching time off 11 ms On switching time 7 ms Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -20 °C...60 °C Temperature of medium -10 °C...60 °C Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4] Ambient temperature -10 °C...60 °C Product weight 220 g 6/5/26 –
