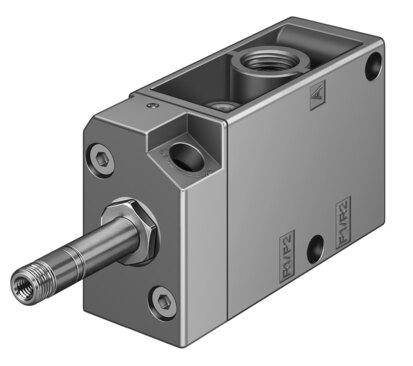

Reference imageConfirm configuration by manufacturer part number.
Festo
10873
Air solenoid valve MFH-3-1/4-S-NPT
The Festo part number 10873 is a 3/2-way closed, monostable industrial component featuring a piloted plate seat structural design with soft sealing principles and a nominal width of 7 mm. This electrical actuated valve operates within a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar) and delivers a normal nominal flow rate of 800 l/min through 1/4 NPT pneumatic working ports. It includes an adjustable exhaust air function, a mechanical spring reset method, a detenting manual override, and external pilot air supply ports, while achieving an IP65 degree of protection and c UL us recognition. Operating voltage is supplied via a solenoid coil ordered separately, and the component supports any mounting position with reversible flow direction. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10873
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10873.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 30.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 800 l/min
- Pneumatic working port
- 1/4 NPT
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar
- Structural design
- Plate seat
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65
- Nominal width
- 7 mm
- Width dimension
- 32 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Negative overlap
- Pilot pressure MPa
- 0.1 MPa...0.8 MPa
- Pilot pressure
- 1 bar...8 bar
- Switching time off
- 29 ms
- On switching time
- 10 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse on 1 signal
- 3700 µs
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Official Festo technical specifications
- Valve function 3/2-way, closed, monostable Actuation type Electrical Width 30.5 mm Normal nominal ow rate (normalized to DIN 1343) 800 l/min Pneumatic working port 1/4 NPT Operating voltage Via solenoid coil, to be ordered separately Operating pressure -0.095 MPa...1 MPa -0.95 bar...10 bar Structural design Plate seat Reset method Mechanical spring Certication c UL us - recognized (OL) Degree of protection IP65 Nominal width 7 mm Width dimension 32 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Manual override Detenting Type of control Piloted Pilot air supply port External Flow direction Reversible Lap Negative overlap Pilot pressure MPa 0.1 MPa...0.8 MPa Pilot pressure 1 bar...8 bar Switching time off 29 ms On switching time 10 ms Max. positive test pulse with 0 signal 2200 µs Max. negative test pulse on 1 signal 3700 µs Coil characteristics See solenoid coil, to be ordered separately Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10873. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
