Festo
10876

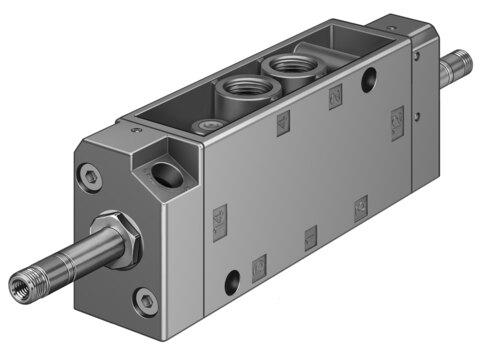

Air solenoid valve JMFH-5-1/4-NPT
The Festo part number 10876 is a 5/2-way bistable industrial component featuring an electrical actuation type and a piloted type of control. This plate seat valve provides a normal nominal flow rate of 1100 l/min through 1/4 NPT pneumatic working ports, operating within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar). Built with IP65 protection, a 7 mm nominal width, and a soft sealing principle, the unit operates at a maximum switching frequency of 25 Hz and requires a separately ordered solenoid coil for operating voltage. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 10876
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 10876.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Width
- 30.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- 1/4 NPT
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Structural design
- Plate seat
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65
- Nominal width
- 7 mm
- Width dimension
- 32 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of control
- Piloted
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Max. switching frequency
- 25 Hz
- Changeover time
- 11 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse on 1 signal
- 3700 µs
- Coil characteristics
- See solenoid coil, to be ordered separately
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -20 °C...60 °C
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -5 °C...40 °C
- Official Festo technical specifications
- Valve function 5/2-way, bistable Actuation type Electrical Width 30.5 mm Normal nominal ow rate (normalized to DIN 1343) 1100 l/min Pneumatic working port 1/4 NPT Operating voltage Via solenoid coil, to be ordered separately Operating pressure 0.15 MPa...0.8 MPa 1.5 bar...8 bar Structural design Plate seat Certication c UL us - recognized (OL) Degree of protection IP65 Nominal width 7 mm Width dimension 32 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Manual override Detenting Type of control Piloted Flow direction Non-reversible Lap Negative overlap Max. switching frequency 25 Hz Changeover time 11 ms Max. positive test pulse with 0 signal 2200 µs Max. negative test pulse on 1 signal 3700 µs Coil characteristics See solenoid coil, to be ordered separately Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -20 °C...60 °C Temperature of medium -10 °C...60 °C Ambient temperature -5 °C...40 °C 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 10876. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
