Festo
1087642

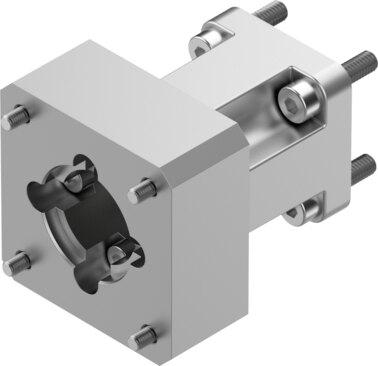

Axial kit EAMM-A-D19-42A
The Festo 130 g industrial component features a nominal length of 50 mm, a transferable torque of 1.1 Nm, and a maximum rotational speed of 10000 rpm. Designed with a mass moment of inertia of 0.28 kgmm², an IP40 degree of protection, and VDMA24364 Zone III LABS conformity, this RoHS-compliant part operates within an ambient temperature range of -10 °C to 60 °C and relative air humidity up to 95%. It accommodates any mounting position and integrates motor interface code 42A with actuator interface code D19. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1087642
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1087642.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 50 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.28 kgmm²
- Transferable torque
- 1.1 Nm
- Product weight
- 130 g
- Interface code, actuator
- D19
- Interface code, motor in
- 42A
- Note on materials
- RoHS compliant
- Official Festo technical specifications
- Nominal length 50 mm Mounting position Any Max. rotational speed 10000 rpm LABS (PWIS) conformity VDMA24364 Zone III Storage temperature -25 °C...60 °C Relative air humidity 0 - 95% Degree of protection IP40 Ambient temperature -10 °C...60 °C Mass moment of inertia 0.28 kgmm² Transferable torque 1.1 Nm Product weight 130 g Interface code, actuator D19 Interface code, motor in 42A Note on materials RoHS compliant 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1087642. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
