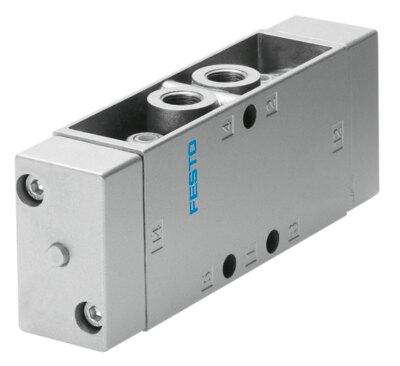

Name: Festo 10879 Pneumatic valve JH-5-1/4-NPT
Brand: Festo

Pneumatic valve JH-5-1/4-NPT

The Festo part number 10879 is a 30.5 mm wide, 5/2-way bistable pneumatic valve featuring a plate seat structural design and soft sealing principle for direct control. It delivers a normal nominal flow rate of 1100 l/min through 1/4 NPT pneumatic working ports, operating within a pressure range of 0 bar to 8 bar and supporting a maximum switching frequency of 12 Hz with an IP65 degree of protection. This non-reversible component operates with an external pilot air supply port requiring a pilot pressure of 1.2 bar to 10 bar, an adjustable exhaust air function, and a negative overlap lap in any mounting position. Please submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 10879
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 10879.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Pneumatic
Width: 30.5 mm
Normal nominal ow rate (normalized to DIN 1343): 1100 l/min
Pneumatic working port: 1/4 NPT
Operating pressure: 0 MPa...0.8 MPa | 0 bar...8 bar
Structural design: Plate seat
Degree of protection: IP65
Nominal width: 7 mm
Width dimension: 32 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Type of control: directly
Pilot air supply port: External
Flow direction: Non-reversible
Lap: Negative overlap
Pilot pressure MPa: 0.12 MPa...1 MPa
Pilot pressure: 1.2 bar...10 bar
Max. switching frequency: 12 Hz
Changeover time: 7 ms
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Storage temperature: -20 °C...60 °C
Temperature of medium: -10 °C...60 °C
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -10 °C...60 °C
Product weight: 330 g
Type of mounting: Alternatively:
Official Festo technical specifications: Valve function 5/2-way, bistable Actuation type Pneumatic Width 30.5 mm Normal nominal ow rate (normalized to DIN 1343) 1100 l/min Pneumatic working port 1/4 NPT Operating pressure 0 MPa...0.8 MPa 0 bar...8 bar Structural design Plate seat Degree of protection IP65 Nominal width 7 mm Width dimension 32 mm Exhaust air function Adjustable Sealing principle Soft Mounting position Any Type of control directly Pilot air supply port External Flow direction Non-reversible Lap Negative overlap Pilot pressure MPa 0.12 MPa...1 MPa Pilot pressure 1.2 bar...10 bar Max. switching frequency 12 Hz Changeover time 7 ms Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Information on operating and pilot media Operation with oil lubrication possible (required for further use) Corrosion resistance class (CRC) 1 - Low corrosion stress LABS (PWIS) conformity VDMA24364-B2-L Storage temperature -20 °C...60 °C Temperature of medium -10 °C...60 °C Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4] Ambient temperature -10 °C...60 °C Product weight 330 g Type of mounting Alternatively: 6/5/26 –

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 10879. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
