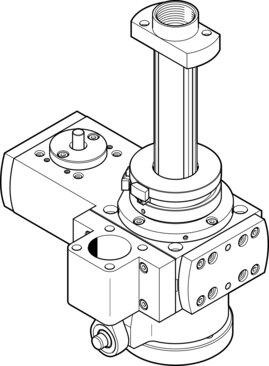

Reference imageConfirm configuration by manufacturer part number.
Festo
1095933
Rotary/lifting module EHMB-25-100
The Festo 1095933 is an electromechanical rotary lifting module with a toothed belt featuring a size 25 design, an 8 mm drive pinion diameter, and an infinite rotation angle with a 4:1 gear ratio. It operates across a working stroke of 0 mm to 100 mm, delivers a max output torque of 8.8 Nm, and achieves a repetition accuracy of ±0.03° with a max speed of 1.5 m/s. Position sensing is supported for inductive sensors, while the unit functions within an ambient temperature range of -10 °C to 60 °C and maintains a noise level of 51 dB(A). Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1095933
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1095933.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion diameter
- 8 mm
- Working stroke
- 0 mm...100 mm
- Size
- 25
- Rotation angle
- Innite
- Toothed belt pitch
- 3 mm
- Mounting position
- Any
- Gearbox type
- Belt drive
- Structural design
- Electromechanical rotary lifting module | With toothed belt
- Gear ratio
- 4:1
- Position sensing
- For inductive sensors
- Max. output speed
- 300 rpm
- Max. input speed
- 1200 rpm
- Max. speed
- 1.5 m/s
- Repetition accuracy
- ±0.03°
- Noise level
- 51 dB(A)
- Information on the sound pressure level
- with covering: 56 [dB (A)]
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5000 kgcm²
- Max. output torque
- 8.8 Nm
- Max. driving torque
- 2.2 Nm
- Max. feed force Fx
- 480 N
- No-load driving torque
- 0.18 Nm
- Guide value for payload, horizontal
- 5000 g
- Guide value for payload, vertical
- 5000 g
- Product weight
- 3347 g
- Moving mass
- 1542 g
- Material of drive shaft
- Steel
- Note on materials
- RoHS compliant
- Material of ange
- Wrought aluminum alloy, anodized
- Drive shaft material
- high-alloy stainless steel
- Official Festo technical specifications
- Drive pinion diameter 8 mm Working stroke 0 mm...100 mm Size 25 Rotation angle Innite Toothed belt pitch 3 mm Mounting position Any Gearbox type Belt drive Structural design Electromechanical rotary lifting module With toothed belt Gear ratio 4:1 Position sensing For inductive sensors Max. output speed 300 rpm Max. input speed 1200 rpm Max. speed 1.5 m/s Repetition accuracy ±0.03° Noise level 51 dB(A) Information on the sound pressure level with covering: 56 [dB (A)] LABS (PWIS) conformity VDMA24364 Zone III Ambient temperature -10 °C...60 °C Mass moment of inertia 5000 kgcm² Max. output torque 8.8 Nm Max. driving torque 2.2 Nm Max. feed force Fx 480 N No-load driving torque 0.18 Nm Guide value for payload, horizontal 5000 g Guide value for payload, vertical 5000 g Product weight 3347 g Moving mass 1542 g Material of drive shaft Steel Note on materials RoHS compliant Material of ange Wrought aluminum alloy, anodized Drive shaft material high-alloy stainless steel 6/5/26 –
