Festo
1098559

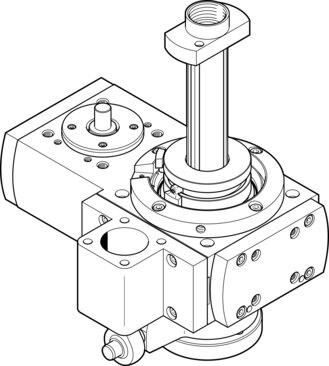

Rotary/lifting module EHMB-32-200
The Festo size 32 electromechanical rotary lifting module features a structural design with a toothed belt, a 3:1 gear ratio, and a working stroke of 0 mm to 200 mm. Operating with an infinite rotation angle, a drive pinion diameter of 12 mm, and a 5 mm toothed belt pitch, this component achieves a maximum output torque of 20 Nm and a repetition accuracy of ±0.03°. It supports any mounting position, accommodates inductive sensors for position sensing, and delivers a maximum speed of 1.5 m/s with a maximum output speed of 300 rpm. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1098559
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1098559.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion diameter
- 12 mm
- Working stroke
- 0 mm...200 mm
- Size
- 32
- Rotation angle
- Innite
- Toothed belt pitch
- 5 mm
- Mounting position
- Any
- Gearbox type
- Belt drive
- Structural design
- Electromechanical rotary lifting module | With toothed belt
- Gear ratio
- 3:1
- Position sensing
- For inductive sensors
- Max. output speed
- 300 rpm
- Max. input speed
- 900 rpm
- Max. speed
- 1.5 m/s
- Repetition accuracy
- ±0.03°
- Noise level
- 51 dB(A)
- Information on the sound pressure level
- with covering: 53 [dB (A)]
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 10000 kgcm²
- Max. output torque
- 20 Nm
- Max. driving torque
- 6.7 Nm
- Max. feed force Fx
- 750 N
- No-load driving torque
- 0.5 Nm
- Guide value for payload, horizontal
- 8000 g
- Guide value for payload, vertical
- 15000 g
- Product weight
- 6388 g
- Moving mass
- 2058 g
- Material of drive shaft
- Steel
- Note on materials
- RoHS compliant
- Material of ange
- Wrought aluminum alloy, anodized
- Drive shaft material
- high-alloy stainless steel
- Official Festo technical specifications
- Drive pinion diameter 12 mm Working stroke 0 mm...200 mm Size 32 Rotation angle Innite Toothed belt pitch 5 mm Mounting position Any Gearbox type Belt drive Structural design Electromechanical rotary lifting module With toothed belt Gear ratio 3:1 Position sensing For inductive sensors Max. output speed 300 rpm Max. input speed 900 rpm Max. speed 1.5 m/s Repetition accuracy ±0.03° Noise level 51 dB(A) Information on the sound pressure level with covering: 53 [dB (A)] LABS (PWIS) conformity VDMA24364 Zone III Ambient temperature -10 °C...60 °C Mass moment of inertia 10000 kgcm² Max. output torque 20 Nm Max. driving torque 6.7 Nm Max. feed force Fx 750 N No-load driving torque 0.5 Nm Guide value for payload, horizontal 8000 g Guide value for payload, vertical 15000 g Product weight 6388 g Moving mass 2058 g Material of drive shaft Steel Note on materials RoHS compliant Material of ange Wrought aluminum alloy, anodized Drive shaft material high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1098559. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
