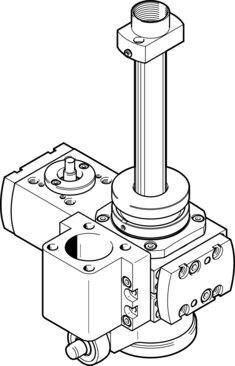

Reference imageConfirm configuration by manufacturer part number.
Festo
1107097
Rotary/lifting module EHMB-20-200
The Festo electromechanical rotary lifting module features a size 20 structural design with an integrated belt drive, 4.5:1 gear ratio, and 2 mm toothed belt pitch operating across a 0 mm to 200 mm working stroke. Delivering a max output torque of 3.15 Nm and a repetition accuracy of ±0.03°, this component accommodates infinite rotation angles with a 6 mm drive pinion diameter and position sensing via inductive sensors. It operates at an ambient temperature range of -10 °C to 60 °C while maintaining a noise level of 54 dB(A), or 57 dB(A) with covering, under VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1107097
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1107097.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Drive pinion diameter
- 6 mm
- Working stroke
- 0 mm...200 mm
- Size
- 20
- Rotation angle
- Innite
- Toothed belt pitch
- 2 mm
- Mounting position
- Any
- Gearbox type
- Belt drive
- Structural design
- Electromechanical rotary lifting module | With toothed belt
- Gear ratio
- 4.5:1
- Position sensing
- For inductive sensors
- Max. output speed
- 300 rpm
- Max. input speed
- 1350 rpm
- Max. speed
- 1.5 m/s
- Repetition accuracy
- ±0.03°
- Noise level
- 54 dB(A)
- Information on the sound pressure level
- with covering: 57 [dB (A)]
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 1000 kgcm²
- Max. output torque
- 3.15 Nm
- Max. driving torque
- 0.7 Nm
- Max. feed force Fx
- 480 N
- No-load driving torque
- 0.07 Nm
- Guide value for payload, horizontal
- 3000 g
- Guide value for payload, vertical
- 3000 g
- Product weight
- 1851 g
- Moving mass
- 885 g
- Material of drive shaft
- Steel
- Note on materials
- RoHS compliant
- Material of ange
- Wrought aluminum alloy, anodized
- Drive shaft material
- high-alloy stainless steel
- Official Festo technical specifications
- Drive pinion diameter 6 mm Working stroke 0 mm...200 mm Size 20 Rotation angle Innite Toothed belt pitch 2 mm Mounting position Any Gearbox type Belt drive Structural design Electromechanical rotary lifting module With toothed belt Gear ratio 4.5:1 Position sensing For inductive sensors Max. output speed 300 rpm Max. input speed 1350 rpm Max. speed 1.5 m/s Repetition accuracy ±0.03° Noise level 54 dB(A) Information on the sound pressure level with covering: 57 [dB (A)] LABS (PWIS) conformity VDMA24364 Zone III Ambient temperature -10 °C...60 °C Mass moment of inertia 1000 kgcm² Max. output torque 3.15 Nm Max. driving torque 0.7 Nm Max. feed force Fx 480 N No-load driving torque 0.07 Nm Guide value for payload, horizontal 3000 g Guide value for payload, vertical 3000 g Product weight 1851 g Moving mass 885 g Material of drive shaft Steel Note on materials RoHS compliant Material of ange Wrought aluminum alloy, anodized Drive shaft material high-alloy stainless steel 6/5/26 –
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1107097. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
