11310

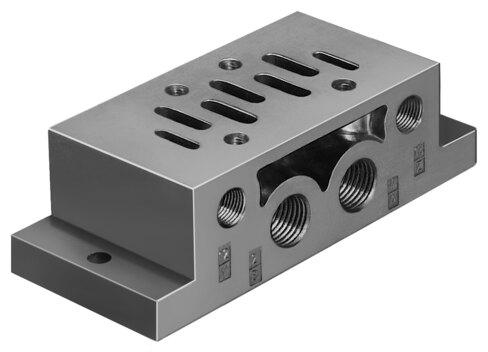

Name: Festo 11310 Individual subbase NAS-3/8-2A-ISO
Brand: Festo

Individual subbase NAS-3/8-2A-ISO

The Festo part number 11310 is an industrial component featuring a die-cast aluminum sub-base and a product weight of 300 g. Designed for through-hole mounting, this unit conforms to ISO 5599-1 with VDMA 24345-A-2 designation, UL - Recognized (OL) certification, and VDMA24364-B1/B2-L LABS (PWIS) conformity. It includes G3/8 pneumatic connections 1 through 5 alongside G1/8 pilot air ports 12/14. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 11310
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 11310.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Designation to VDMA: VDMA 24345-A-2
Conforms to standard: ISO 5599-1
Certication: UL - Recognized (OL)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Product weight: 300 g
Type of mounting: With through-hole
Pilot air port 12/14: G1/8
Pneumatic connection 1: G3/8
Pneumatic connection 2: G3/8
Pneumatic connection 3: G3/8
Pneumatic connection 4: G3/8
Pneumatic connection 5: G3/8
Material of sub-base: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 11310. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
