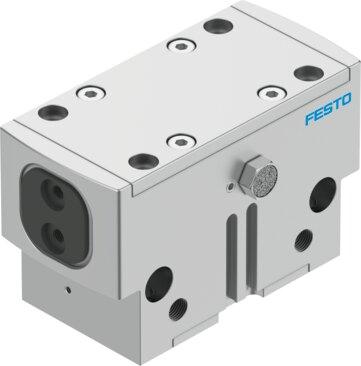

Reference imageConfirm configuration by manufacturer part number.
Festo
1132951
Parallel gripper HGPD-50-A
The Festo 1132951 is a double-acting pneumatic parallel gripper featuring two jaws, a size 50 designation, and a 12 mm stroke per gripper jaw utilizing an inclined plane structural design with positively driven motion sequence. This component operates at a pressure range of 3 bar to 8 bar with sealing air operating pressure from 0 bar to 0.5 bar, delivering a repetition accuracy of 0.05 mm, a maximum operating frequency of 2 Hz, and minimum opening and closing times of 90 ms and 100 ms respectively at 6 bar. Position sensing is accomplished via proximity switch, supporting mounting in any position with a maximum interchangeability of 0.2 mm, rotational symmetry of 0.2 mm, maximum gripper jaw angular play ax and ay of 0.1 degrees, and maximum gripper jaw backlash Sz of 0.02 mm without gripping force backup. Submit the exact part number, quantity, and application requirements for a formal price quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1132951
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1132951.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 50
- Stroke per gripper jaw
- 12 mm
- Max. interchangeability
- 0.2 mm
- Max. gripper jaw angular play ax, ay
- 0.1 deg
- Max. gripper jaw backlash Sz
- 0.02 mm
- Rotational symmetry
- 0.2 mm
- Pneumatic gripper repetition accuracy
- 0.05 mm
- Number of gripper jaws
- 2
- Actuator system
- Pneumatic
- Mounting position
- Any
- Mode of operation
- Double-acting
- Gripper function
- Parallel
- Gripping force backup
- None
- Structural design
- Inclined plane | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Operating pressure
- 3 bar...8 bar
- Operating pressure for sealing air
- 0 bar...0.5 bar
- Max. operating frequency of pneumatic gripper
- 2 Hz
- Min. opening time at 6 bar
- 90 ms
- Min. closing time at 6 bar
- 100 ms
- Max. mass per external gripper nger
- 318 g
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Degree of protection
- IP65
- Ambient temperature
- 5 °C...60 °C
- Gripping force per gripper jaw at 6 bar, opening
- 944 N | 472 N
- Gripping force per gripper jaw at 6 bar, closing
- 894 N | 447 N
