Festo
1133402

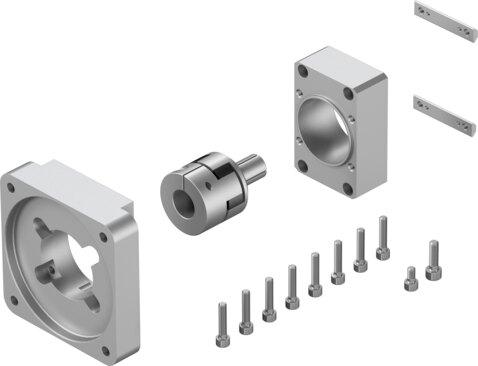

Axial kit EAMM-A-R48-100A
The Festo 1133402 industrial component is an R48 actuator and 100A motor interface assembly with a nominal length of 59 mm, a mass moment of inertia of 39 kgmm², and a transferable torque of 17 Nm. Weighing 970 g with RoHS-compliant materials and VDMA24364-B2-L LABS conformity, it supports any mounting position up to a maximum rotational speed of 6000 rpm. Operating within an ambient temperature range of -10 °C to 60 °C, relative air humidity of 0 to 95%, storage temperatures between -25 °C and 60 °C, and an IP40 degree of protection, this unit meets precise system specifications. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1133402
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1133402.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 59 mm
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 39 kgmm²
- Transferable torque
- 17 Nm
- Product weight
- 970 g
- Interface code, actuator
- R48
- Interface code, motor in
- 100A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1133402. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
