Festo
1133403

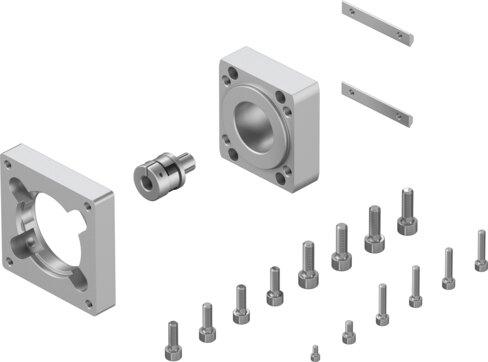

Axial kit EAMM-A-R27-57A
Manufactured by Festo, part number 1133403 is an industrial component featuring a nominal length of 26 mm, a transferable torque of 1.6 Nm, and a maximum rotational speed of 10000 rpm with a mass moment of inertia of 0.355 kgmm². The unit integrates an actuator interface code R27 and a motor input interface code 57A, while providing an IP40 degree of protection, RoHS compliant materials, and VDMA24364-B2-L LABS conformity for storage and ambient temperatures spanning -25 °C to 60 °C and -10 °C to 60 °C respectively. Weighing 170 g with a relative air humidity tolerance of 0 to 95% and any mounting position, this component operates under specified conditions. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1133403
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1133403.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 26 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 0.355 kgmm²
- Transferable torque
- 1.6 Nm
- Product weight
- 170 g
- Interface code, actuator
- R27
- Interface code, motor in
- 57A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1133403. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
