Festo
11416

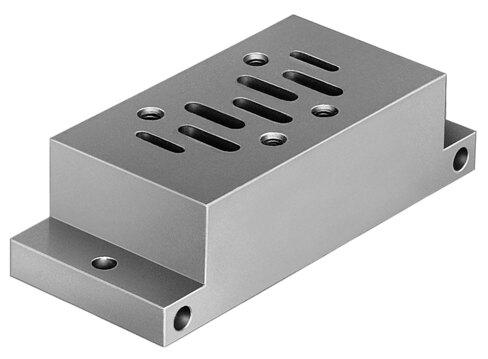

Individual subbase NAU-3/8-2B-ISO
The Festo part number 11416 is an industrial component featuring a die-cast aluminum sub-base with a product weight of 450 g and through-hole mounting. Conforming to ISO 5599-1 with VDMA 24345-B-2 designation, this unit includes G3/8 pneumatic connections 1 through 5, G1/8 pilot air ports 12/14, UL recognition, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 11416
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 11416.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Designation to VDMA
- VDMA 24345-B-2
- Conforms to standard
- ISO 5599-1
- Certication
- UL - Recognized (OL)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 450 g
- Type of mounting
- With through-hole
- Pilot air port 12/14
- G1/8
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G3/8
- Pneumatic connection 3
- G3/8
- Pneumatic connection 4
- G3/8
- Pneumatic connection 5
- G3/8
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 11416. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
